Price

€ 117.500,-

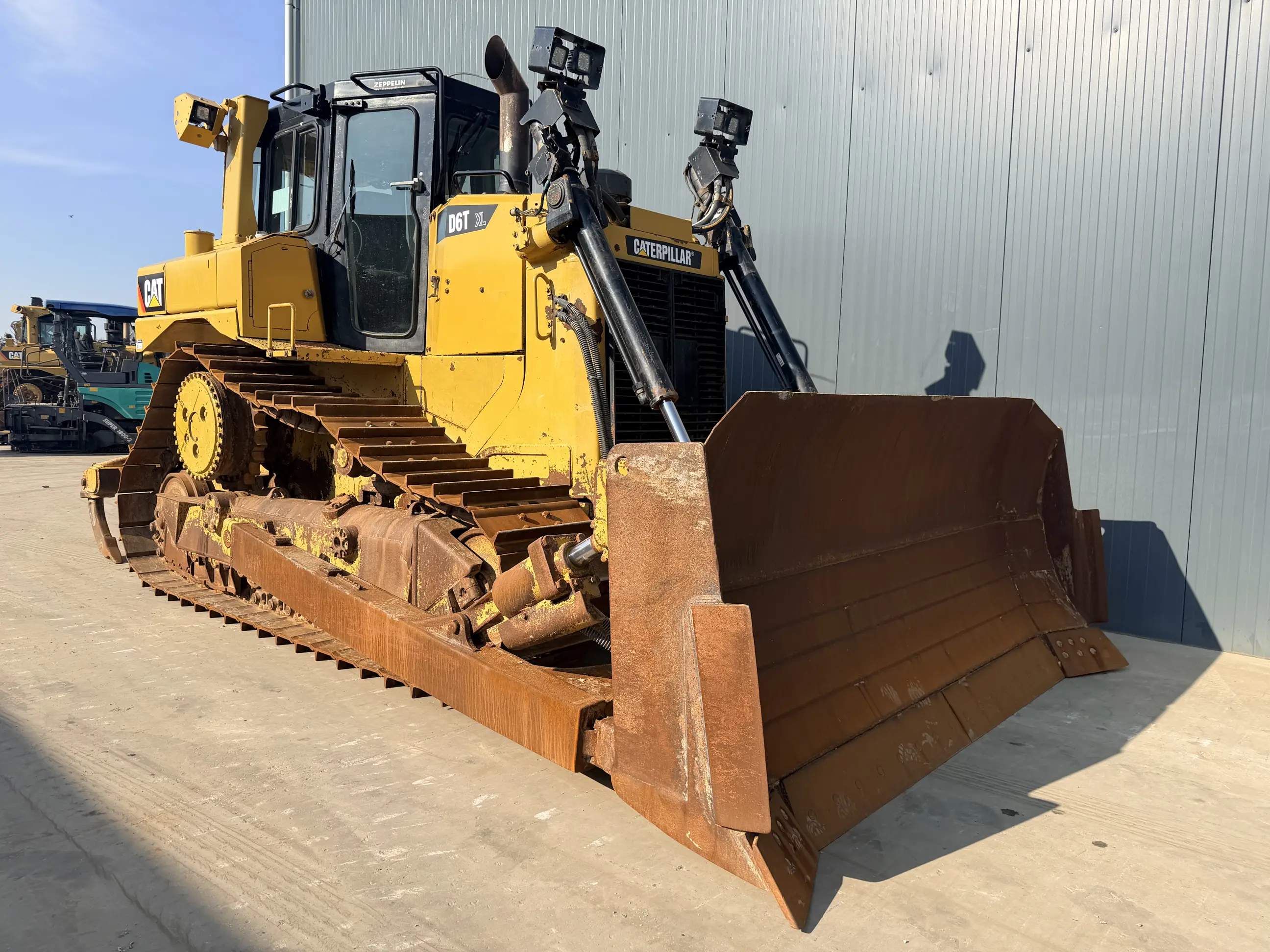

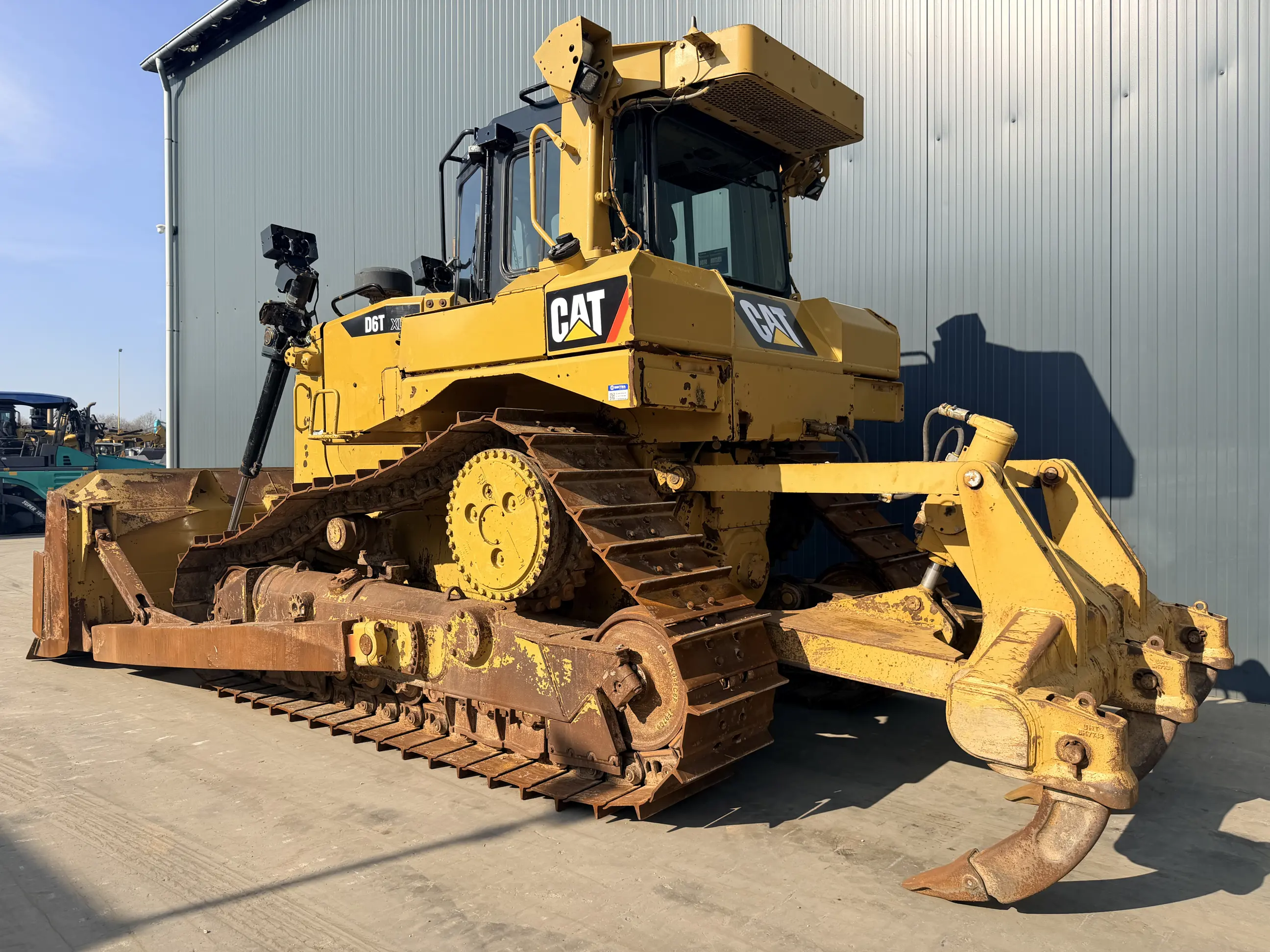

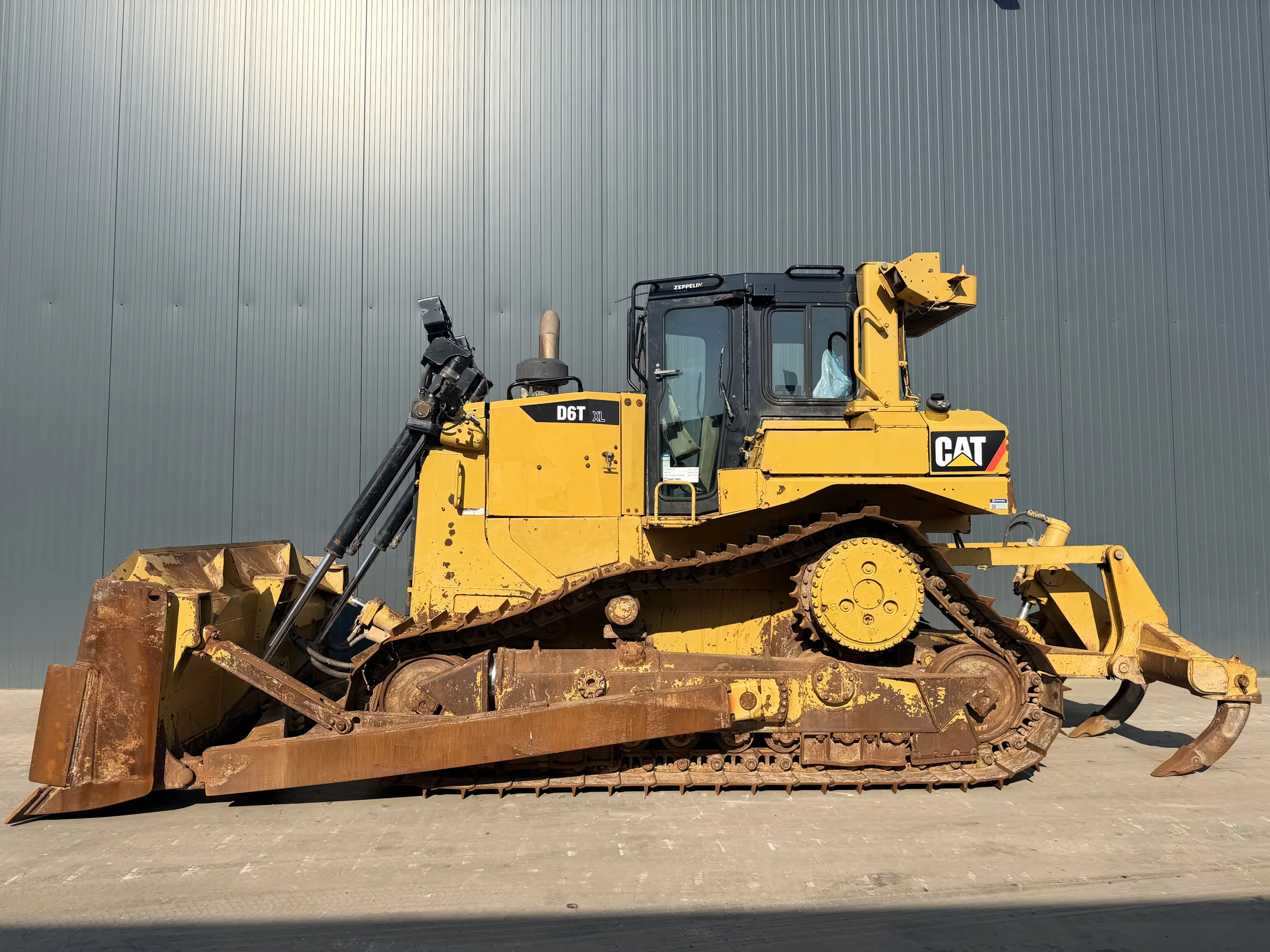

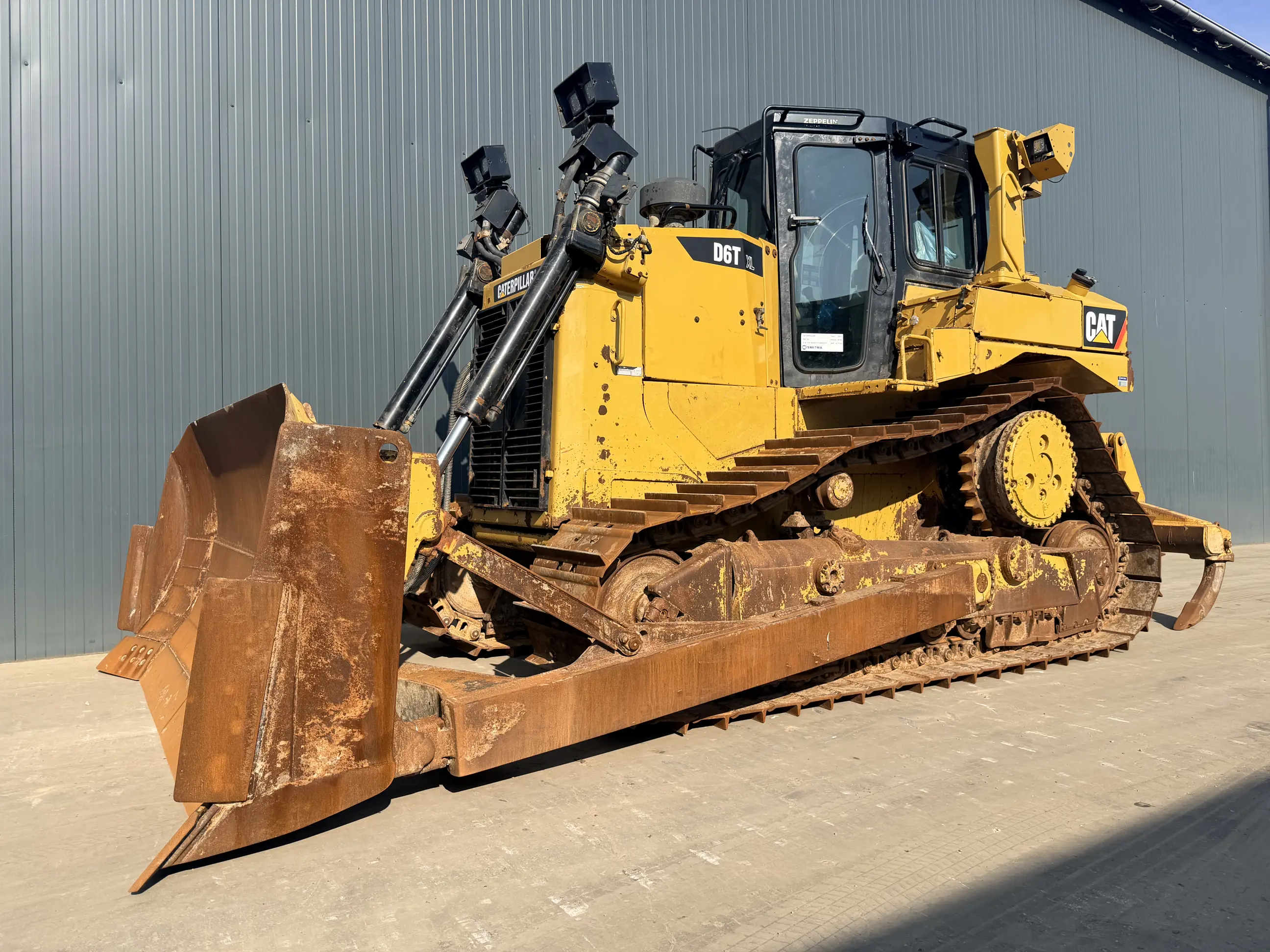

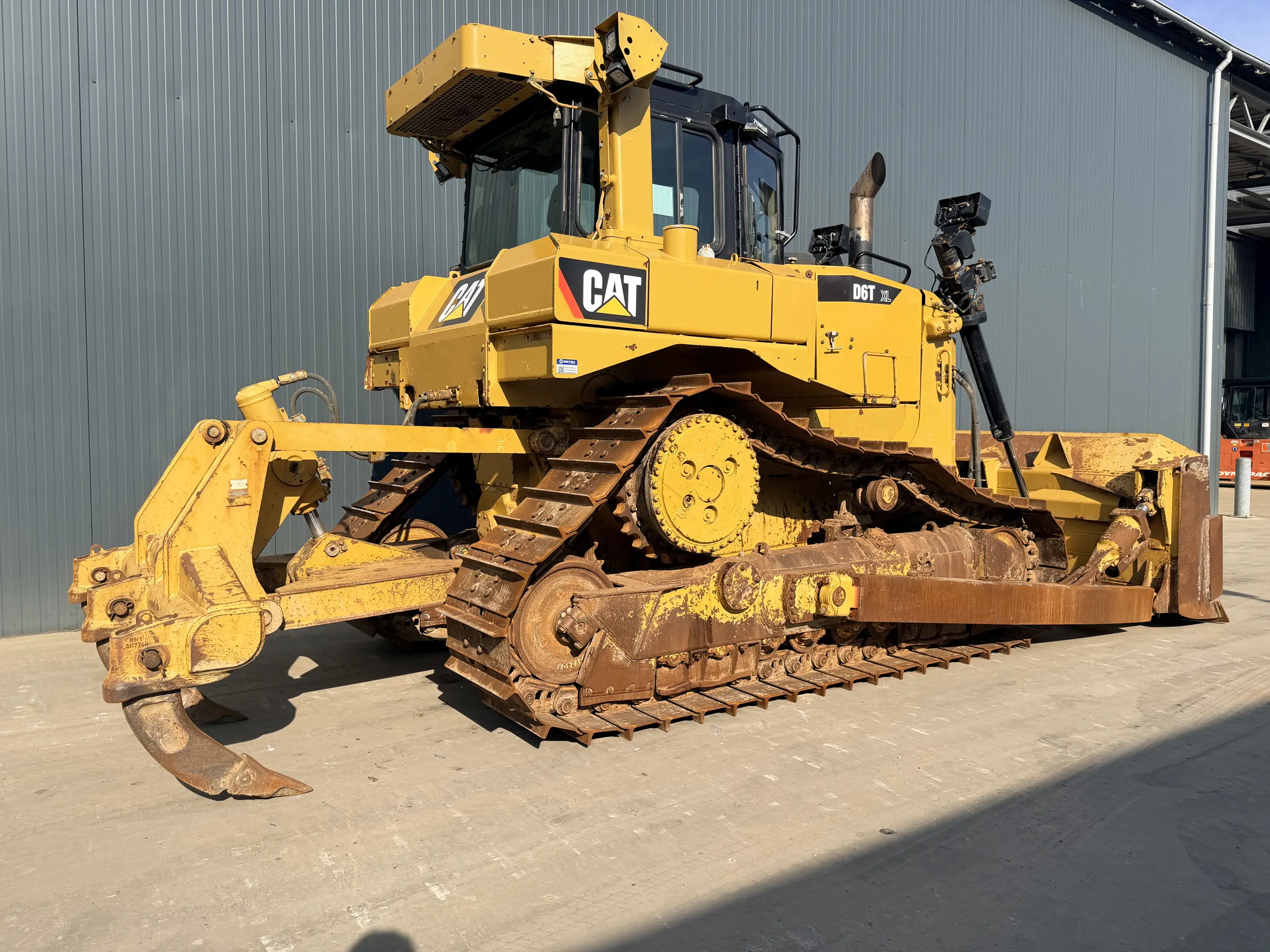

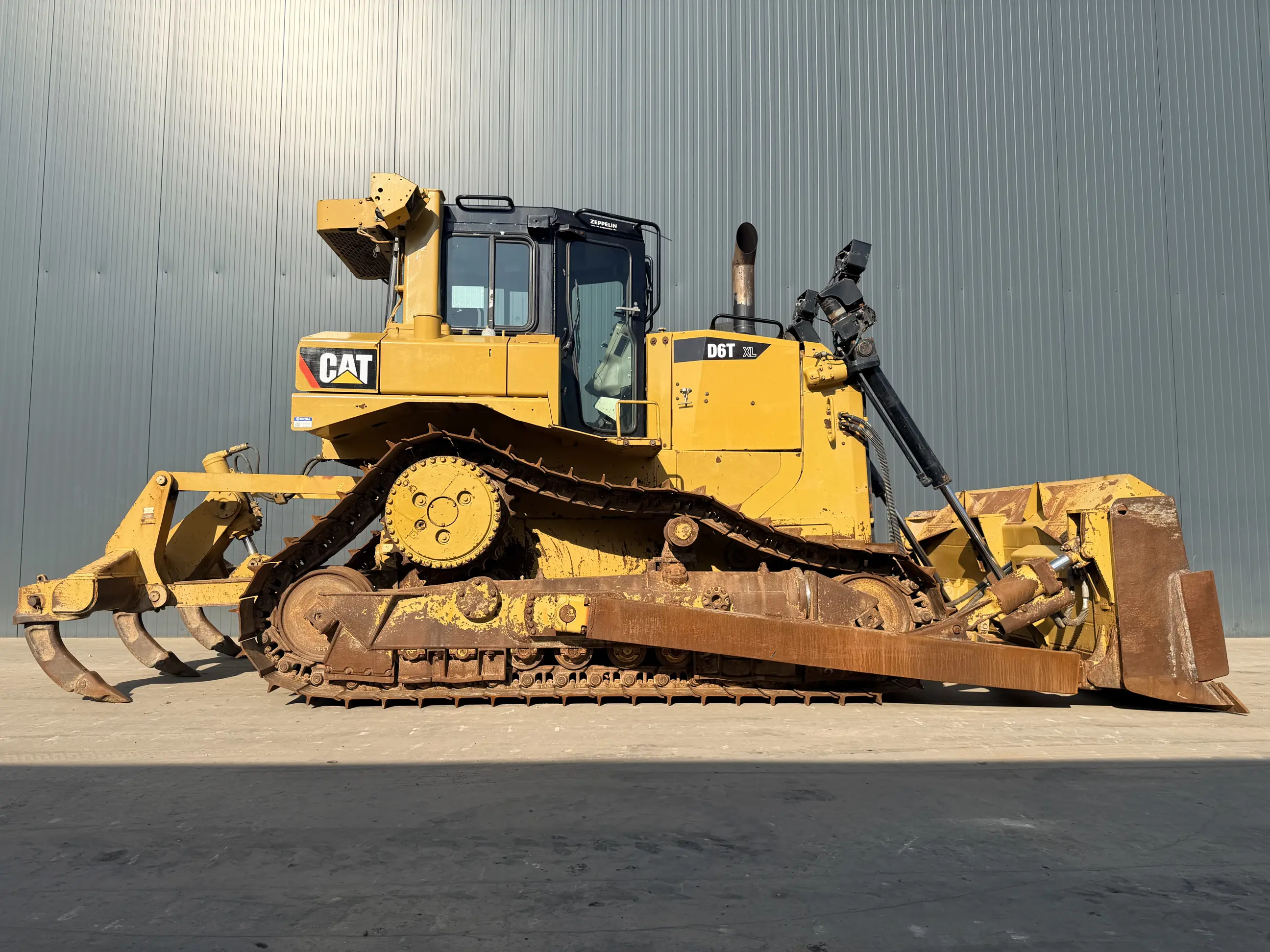

The Caterpillar D6T XL is a robust bulldozer built in 2013 with a Caterpillar brand engine, model C9.3, and a power output of 186 kW. With a Tier 4i emission level, this machine meets EPA and CE standards, making it environmentally friendly and efficient. Boasting a straight tilt blade with a width of 3.20 meters, differential steering, and a multi-shank ripper, it’s equipped for heavy-duty tasks. The machine features an Erops cabin with air conditioning and AM/FM radio, ensuring comfort for the operator. With 9182 certified hours of use, this dozer is in very good and clean condition, ready for immediate use. It has a total weight of 23,500 kg and its dimensions are 6.80 x 3.20 x 3.25 meters.

Year: 2013
Hours: 9.182
Weight: 23.500 kg
Reference: #211734

Need advice or ready to buy?

Send us a message

via Email via WhatsApp

Documents

Brochure Caterpillar D6T XL.pdf

Quick question? Chat with us!

Available between 07:00 AM and 05:30 PM (CET/CEST)

Start chat

Information about this machine

Year: 2013
Hours: 9.182
Weight: 23.500 kg
Dimensions: 6.8 x 3.2 x 3.25m
Condition: Used
Reference: #211734
Serial number: CAT00D6TCTSM00211
Engine brand: Caterpillar
Engine model: C9.3
Engine power in kW: 186kW
EPA: Yes

CE: Yes
Emission level: Tier 4i
Air conditioning: Yes

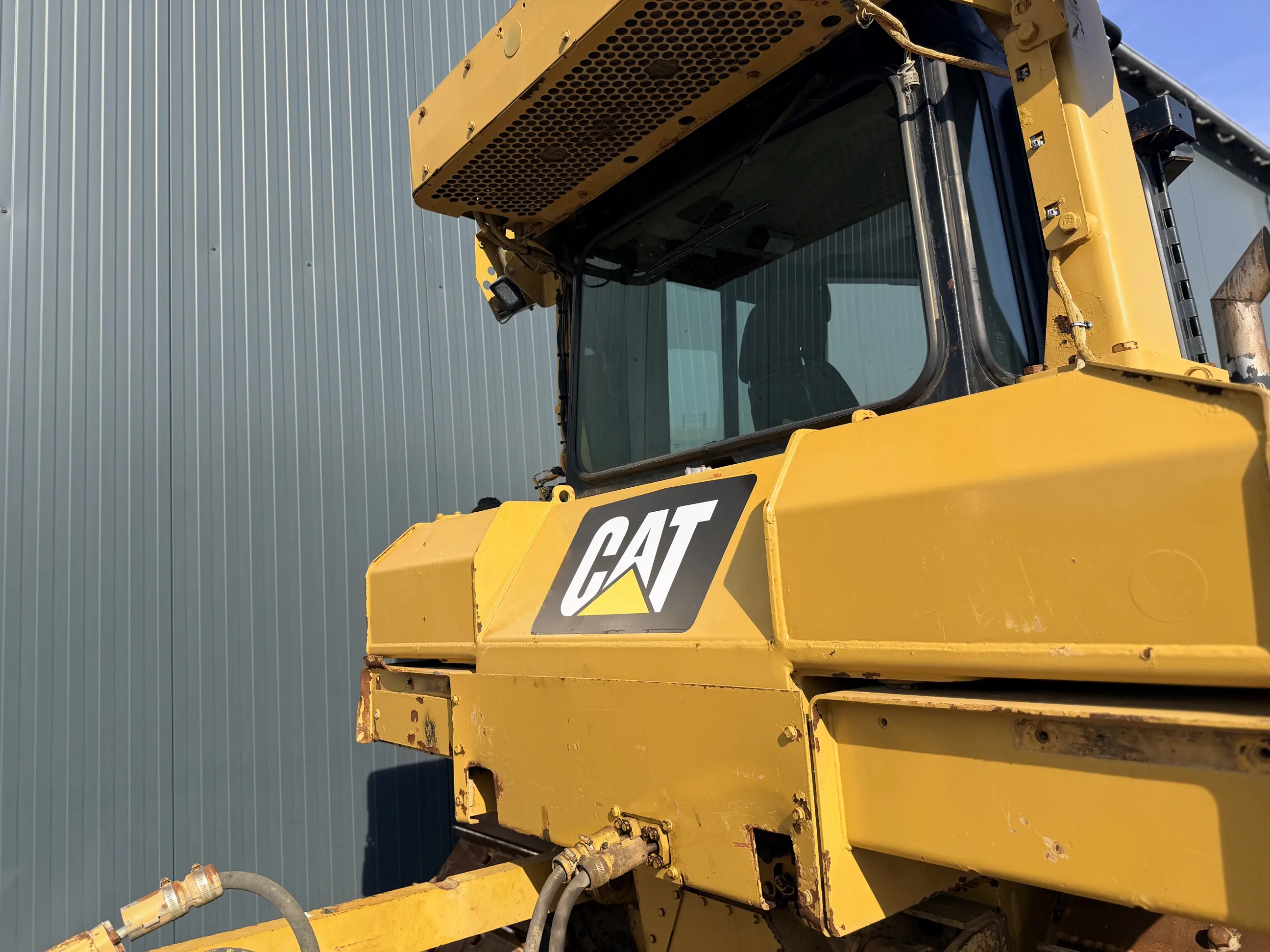

Erops cabin: Yes

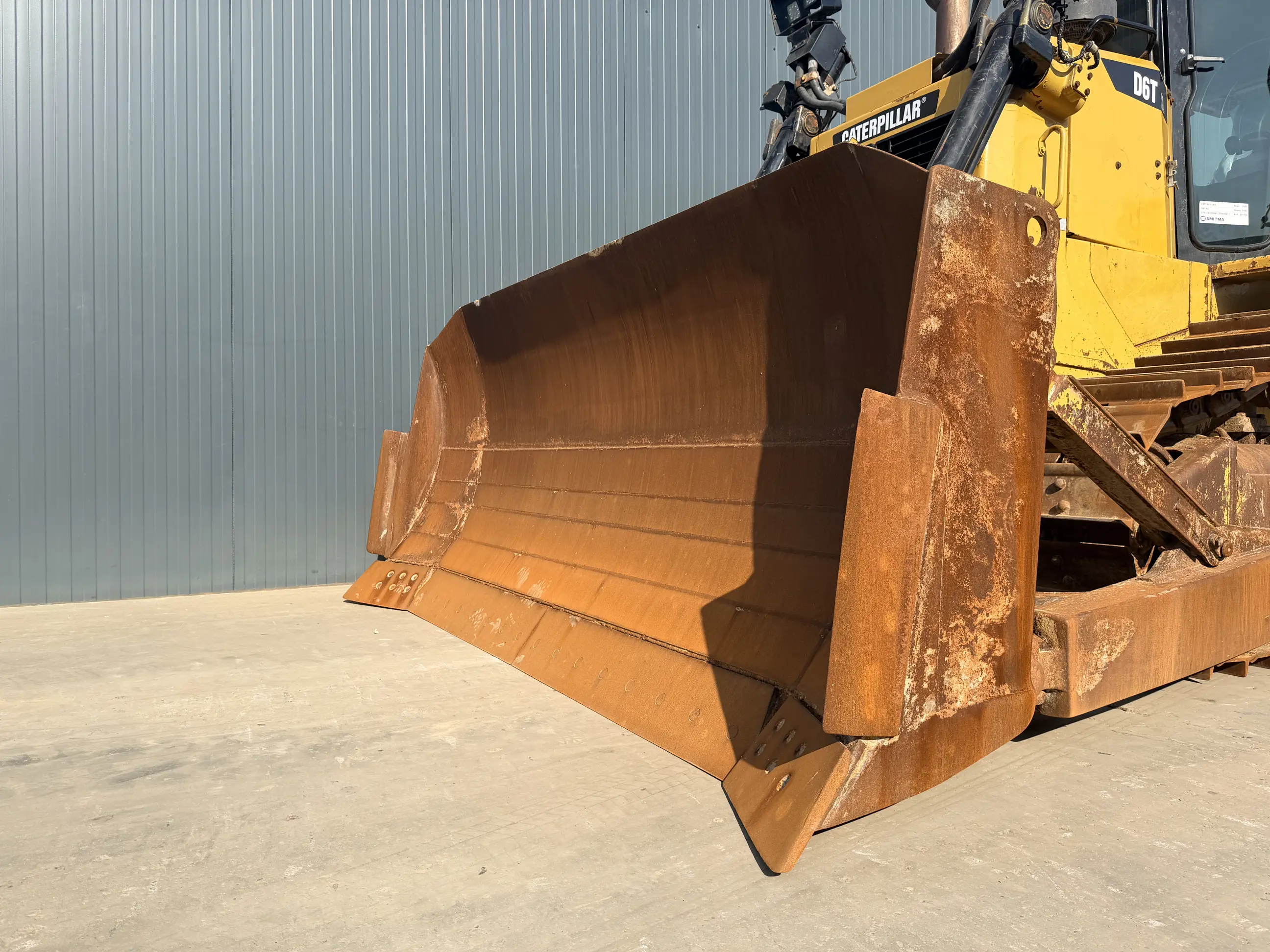

Blade: Straight tilt blade
Width of the blade: 3,20m
Steering: Differential steering

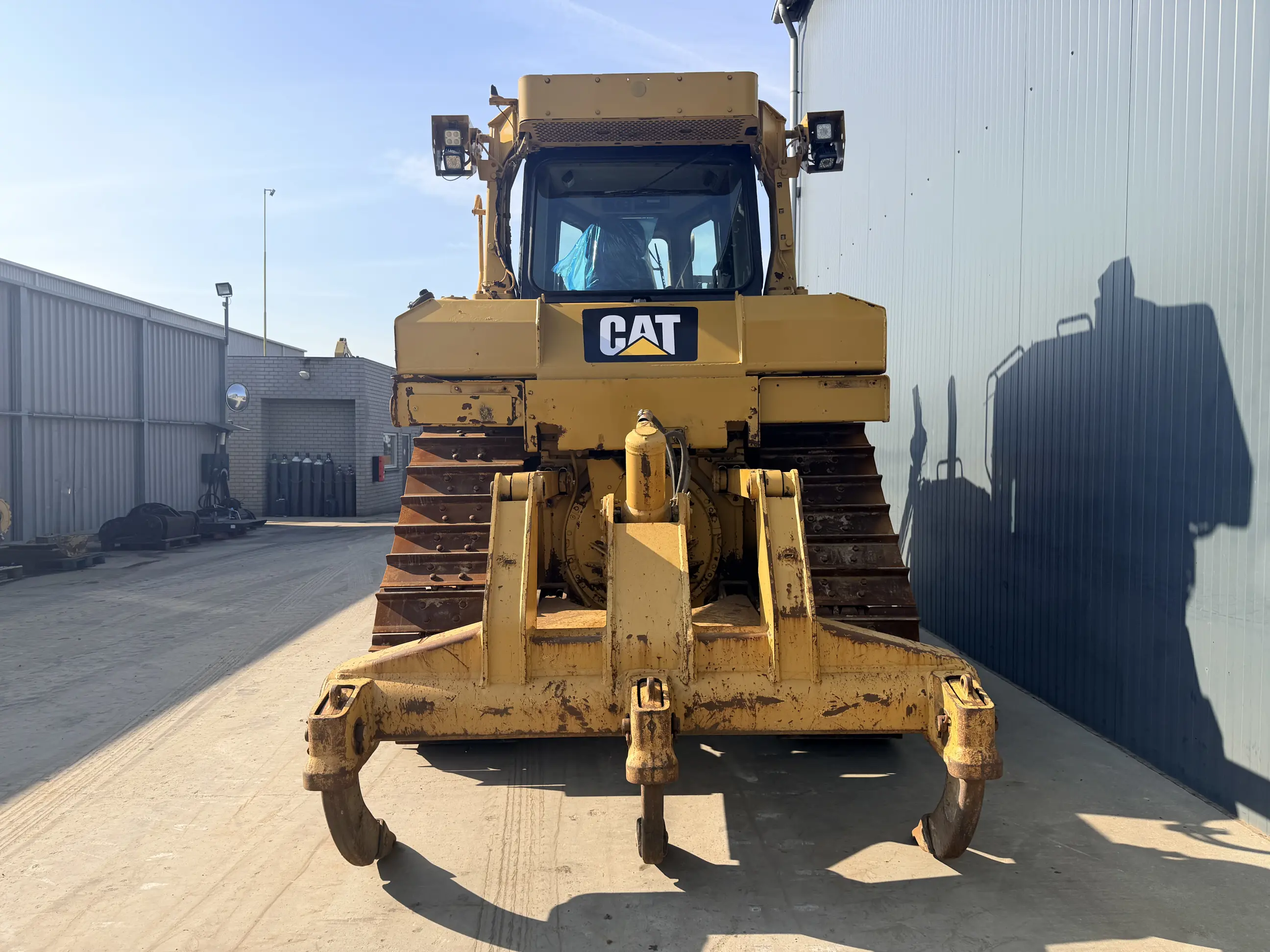

Ripper or valve: Multi shank ripper
Width of the pads: 610mm
Hours: Hours certified by Caterpillar
Overall condition: In very good and clean condition.

Features
Features
- Engine brand

  Caterpillar
- Engine model

  C9.3
- Engine power in kW

  186kW
- EPA

  Yes
- CE

  Yes
- Emission level

  Tier 4i
- Air conditioning

  Yes
- Erops cabin

  Yes
- Blade

  Straight tilt blade
- Width of the blade

  3,20m
- Steering

  Differential steering
- Ripper or valve

  Multi shank ripper
- Width of the pads

  610mm
- Hours

  Hours certified by Caterpillar
- Overall condition

  In very good and clean condition.
Documents
Documents
- CE document

  CE document available
- Parts book

  Yes
- Operation manual

  Yes
General Appearance
General Appearance
- Stamped serial number checked

  Yes

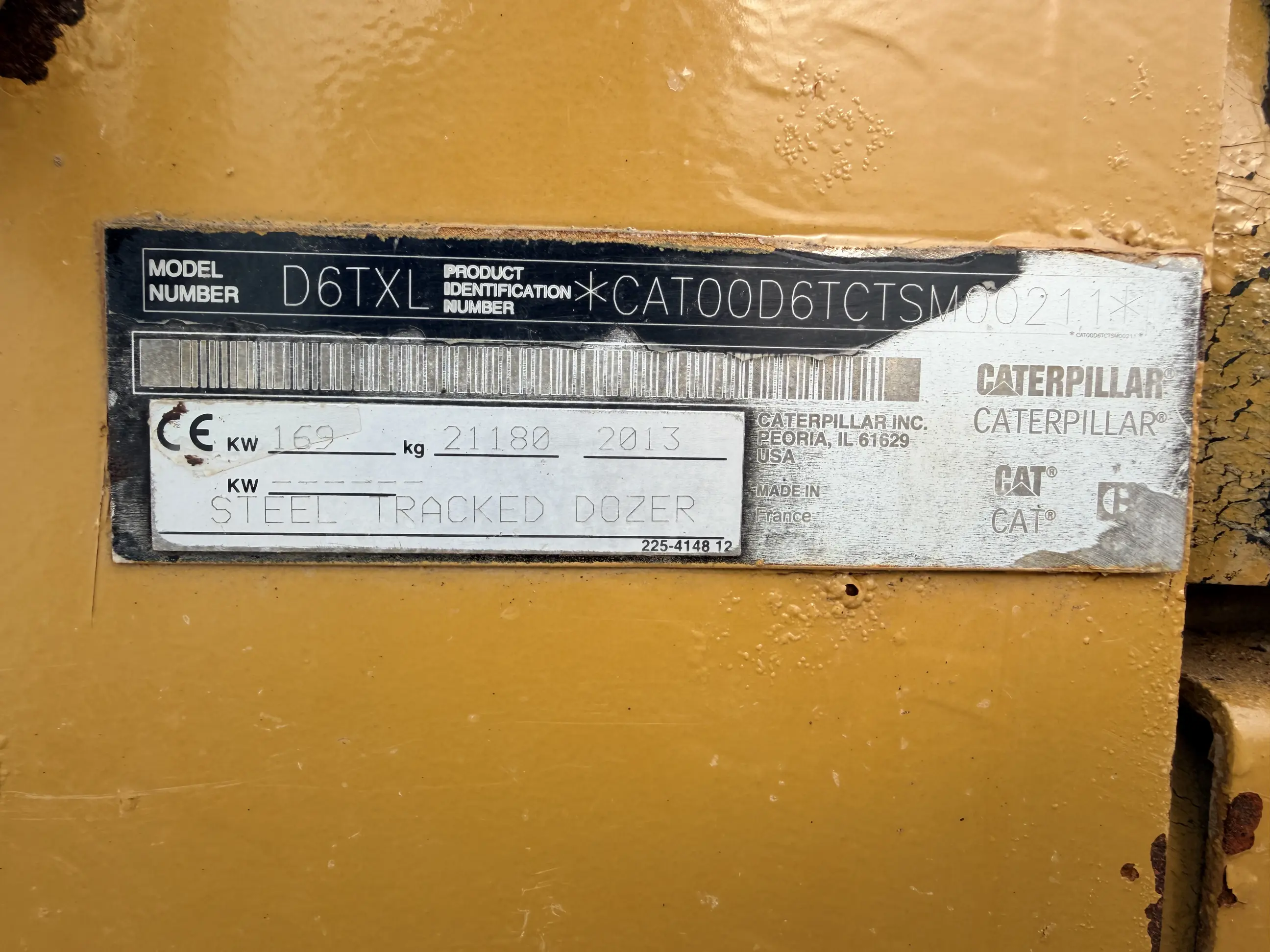

- Serial number plate checked

  Yes
- Paint
- Decals
- Bonnet
- Engine cover doors
- Chassis
- Toolbox
- Grab irons
- Cabin
- Belly plate
- Pre-cleaner bowl

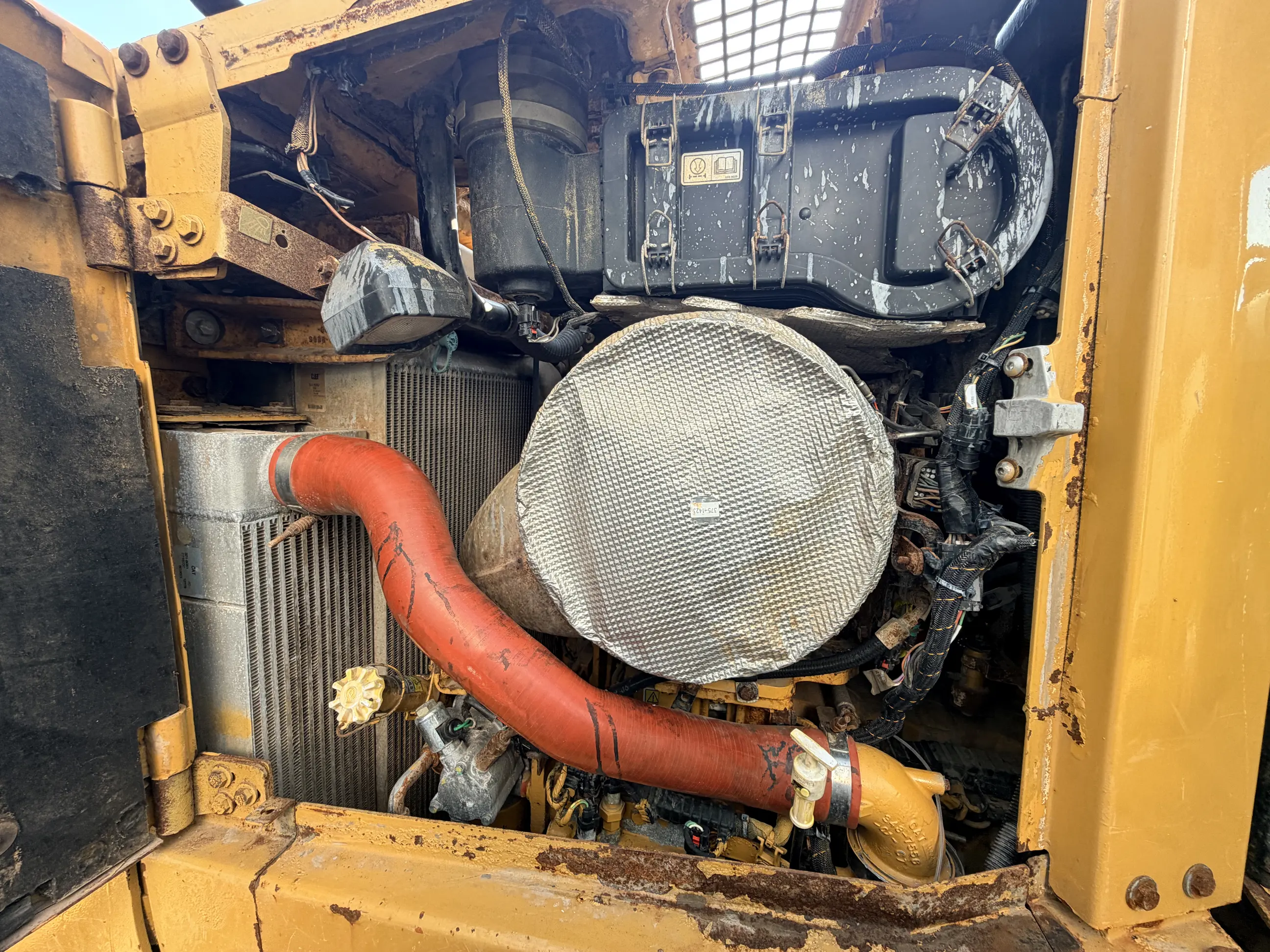

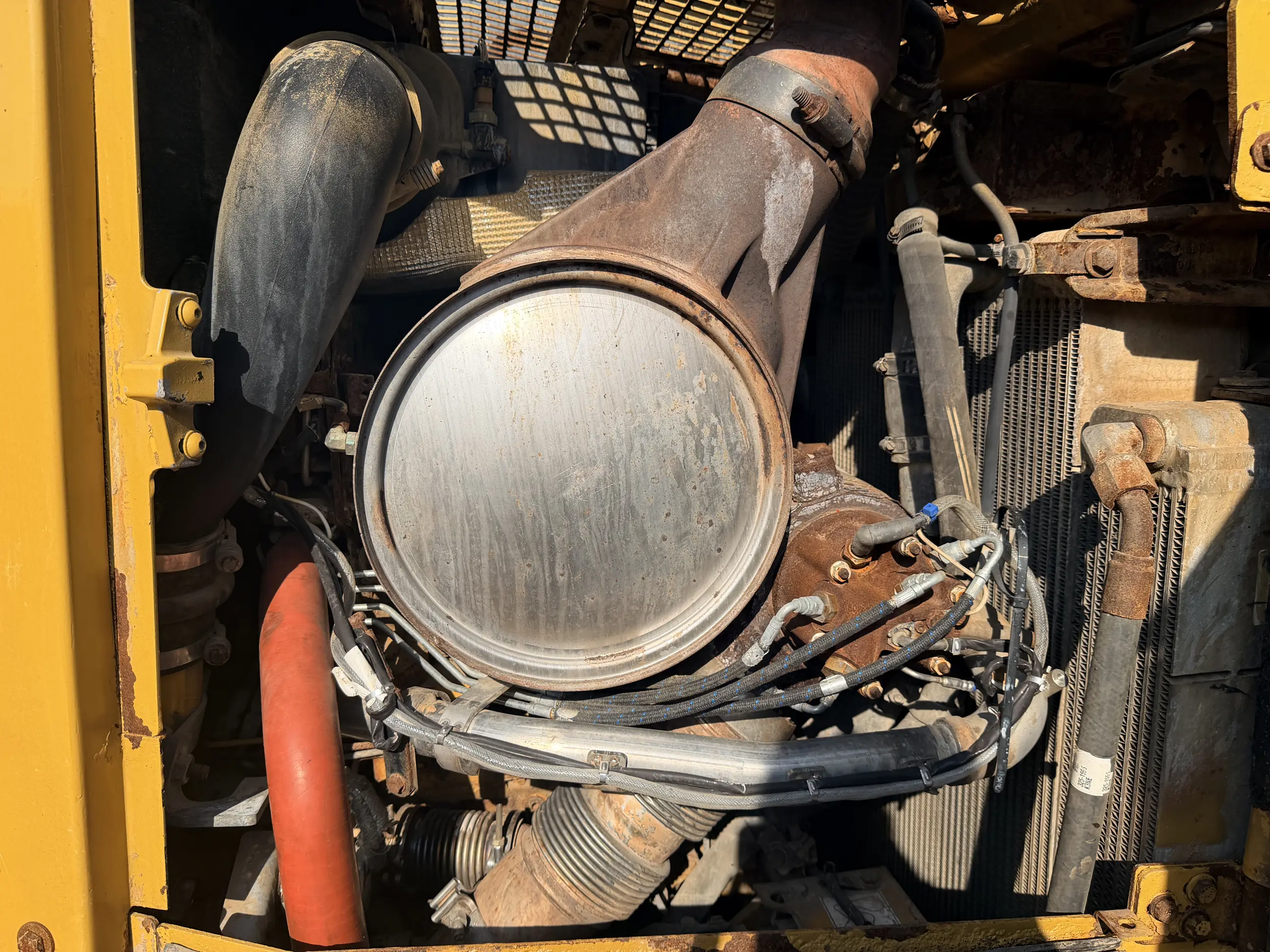

Engine Details and Condition
Engine Details and Condition

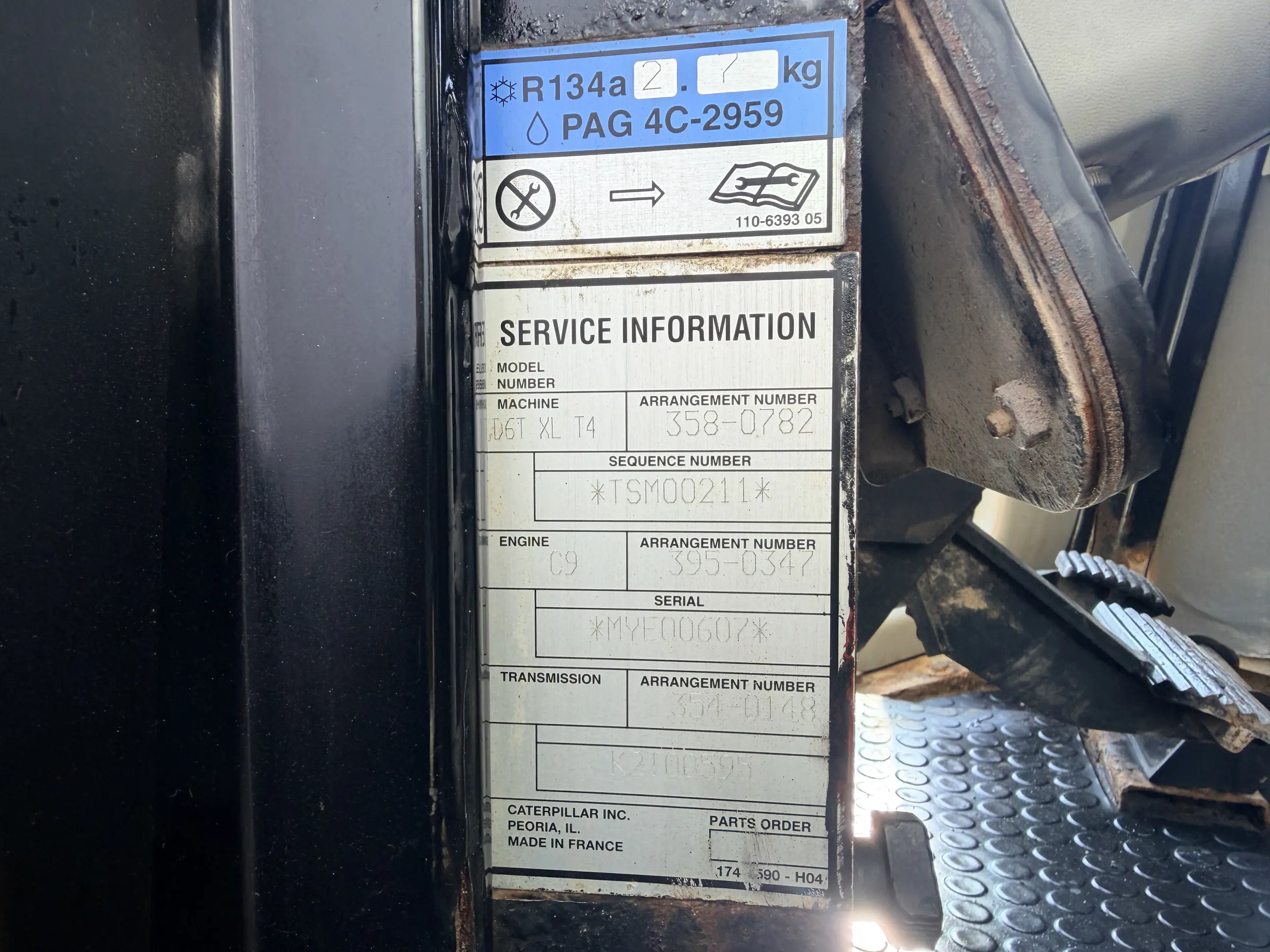

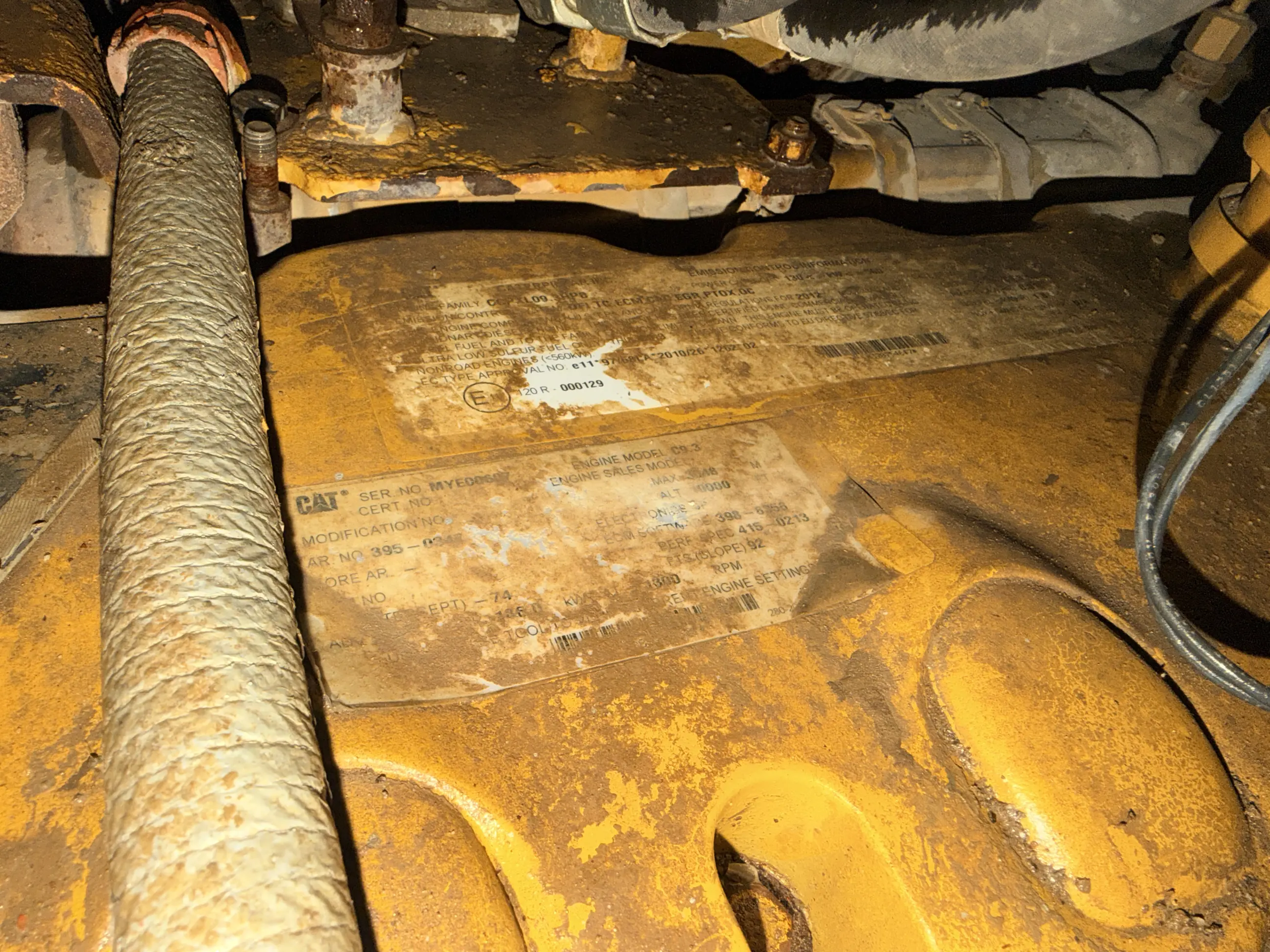

- Engine number

  MYE00607
- Arrangement number

  395-0347
- EPA sticker available

  Yes
- Air cleaner

  Clean
- Anti-freeze level °C

  -31°C
- Diesel anti-freeze added

  Yes
- Diesel level ok

  Yes
- Cooling liquid level ok

  Yes
- Engine oil level ok

  Yes
- Exhaust manifold
- Muffler

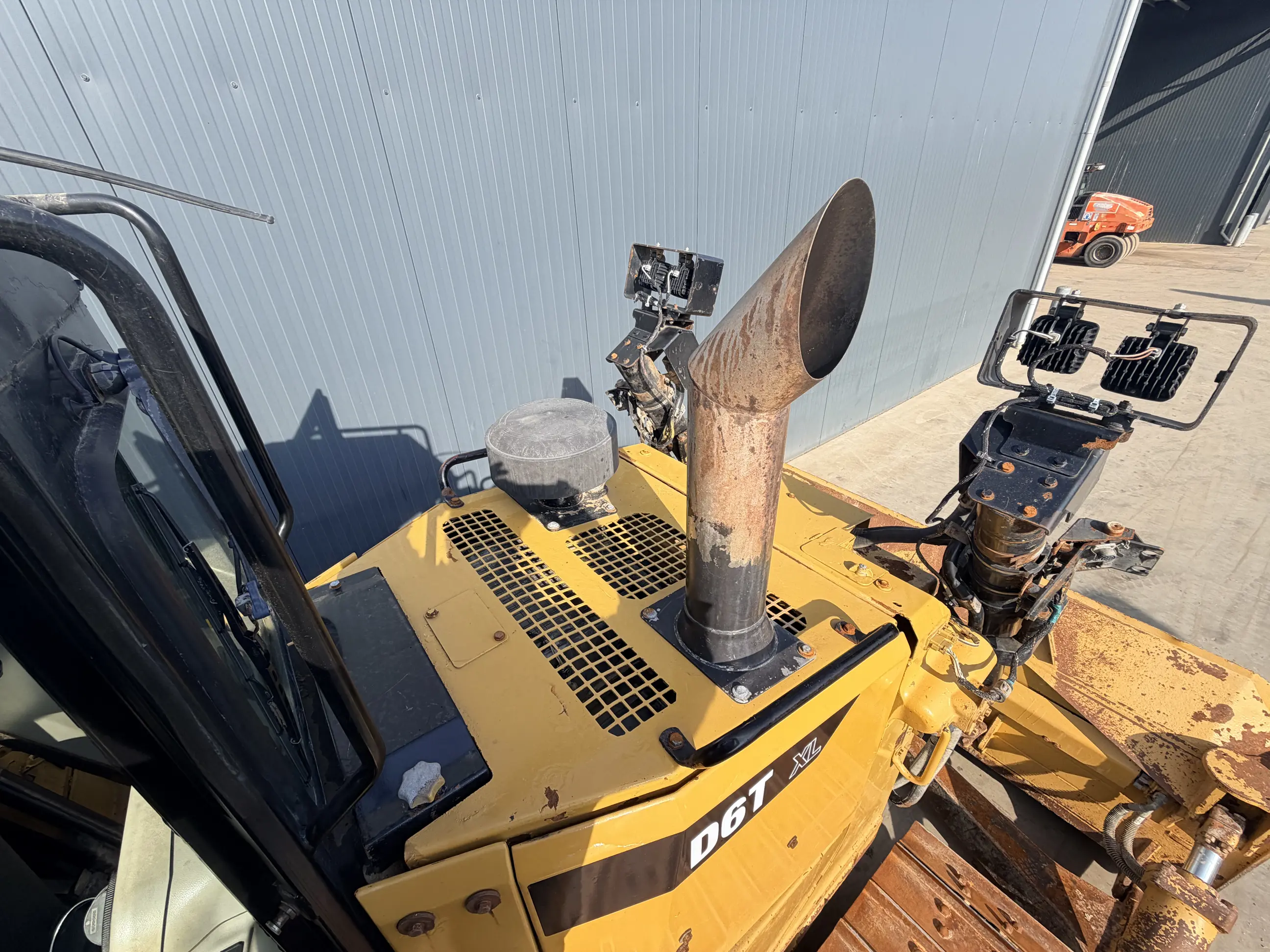

- Exhaust stack
- Engine supports
- Hoses
- Good cold start

  Yes
- Engine power
- Blow by
- Knocking

  No
- Compression in the radiator

  No
- Water in the oil

  No
- Oil in the water

  No
- Smoke

  Normal
- Engine leaks

  No
- Belts and pulleys
- Fan
- Radiator

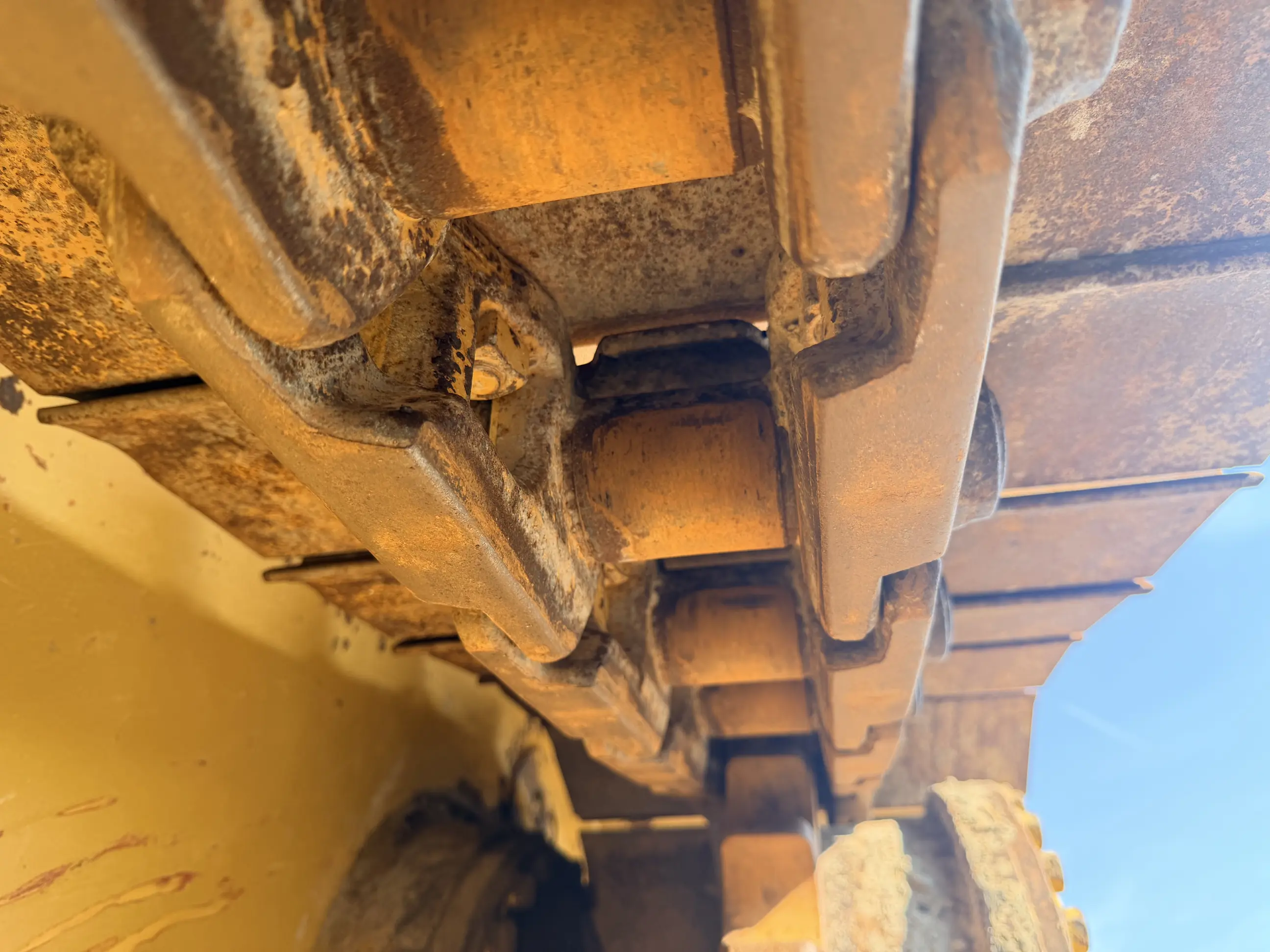

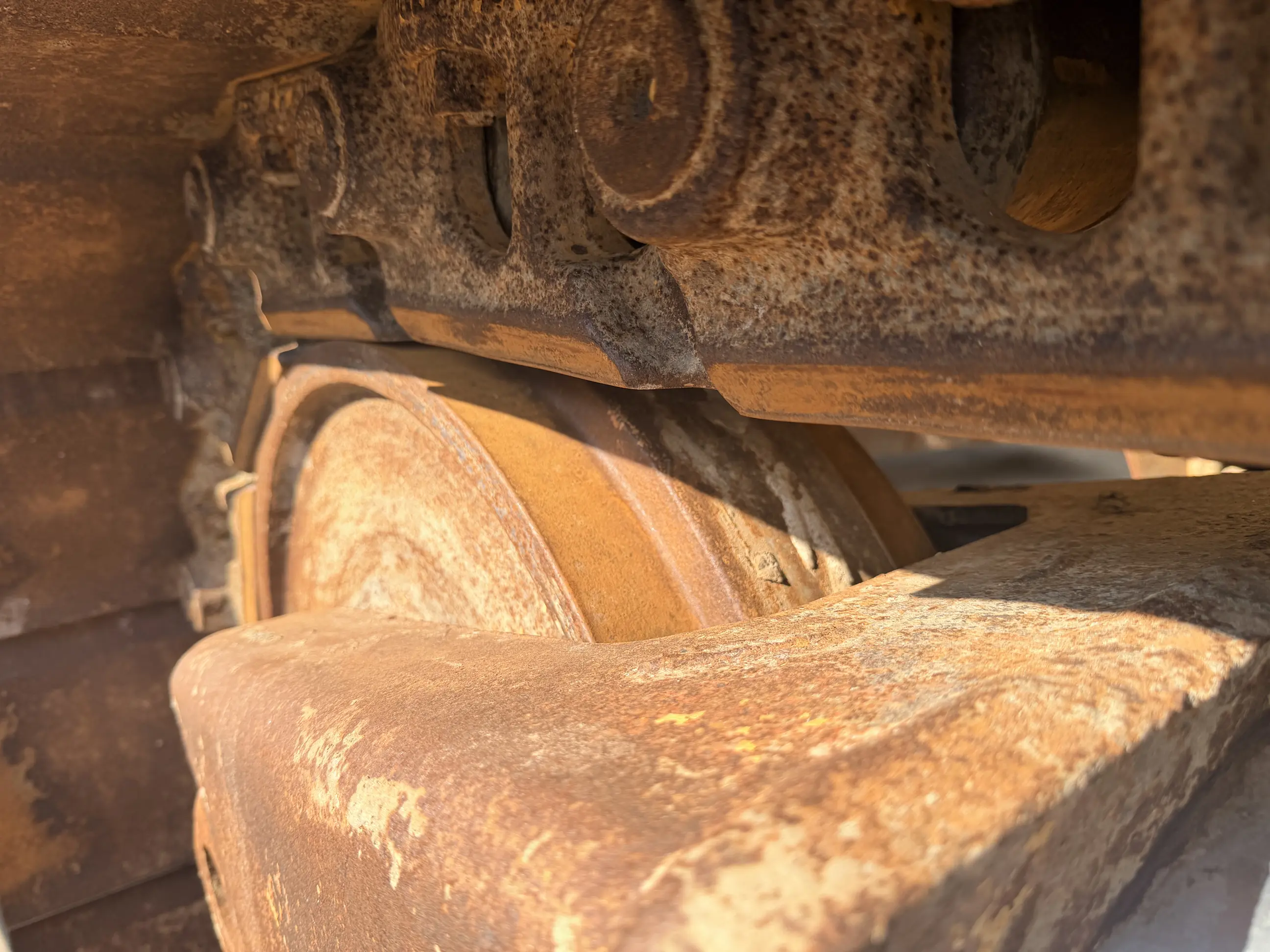

Undercarriage left in life in %
Undercarriage left in life in %
- Overall condition

  70%
- Chains

  70%
- Bushings

  80%

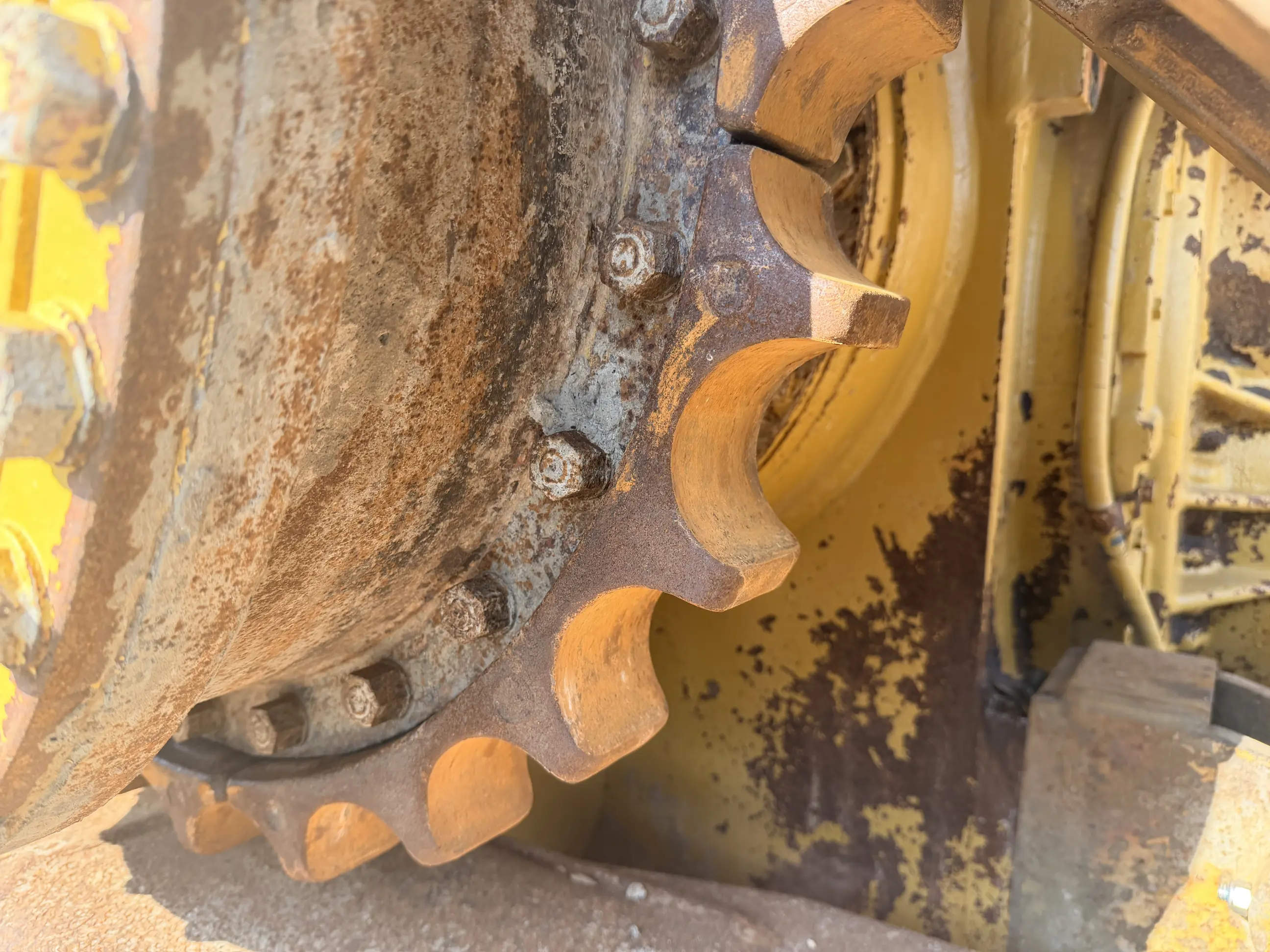

- Sprockets

  70%

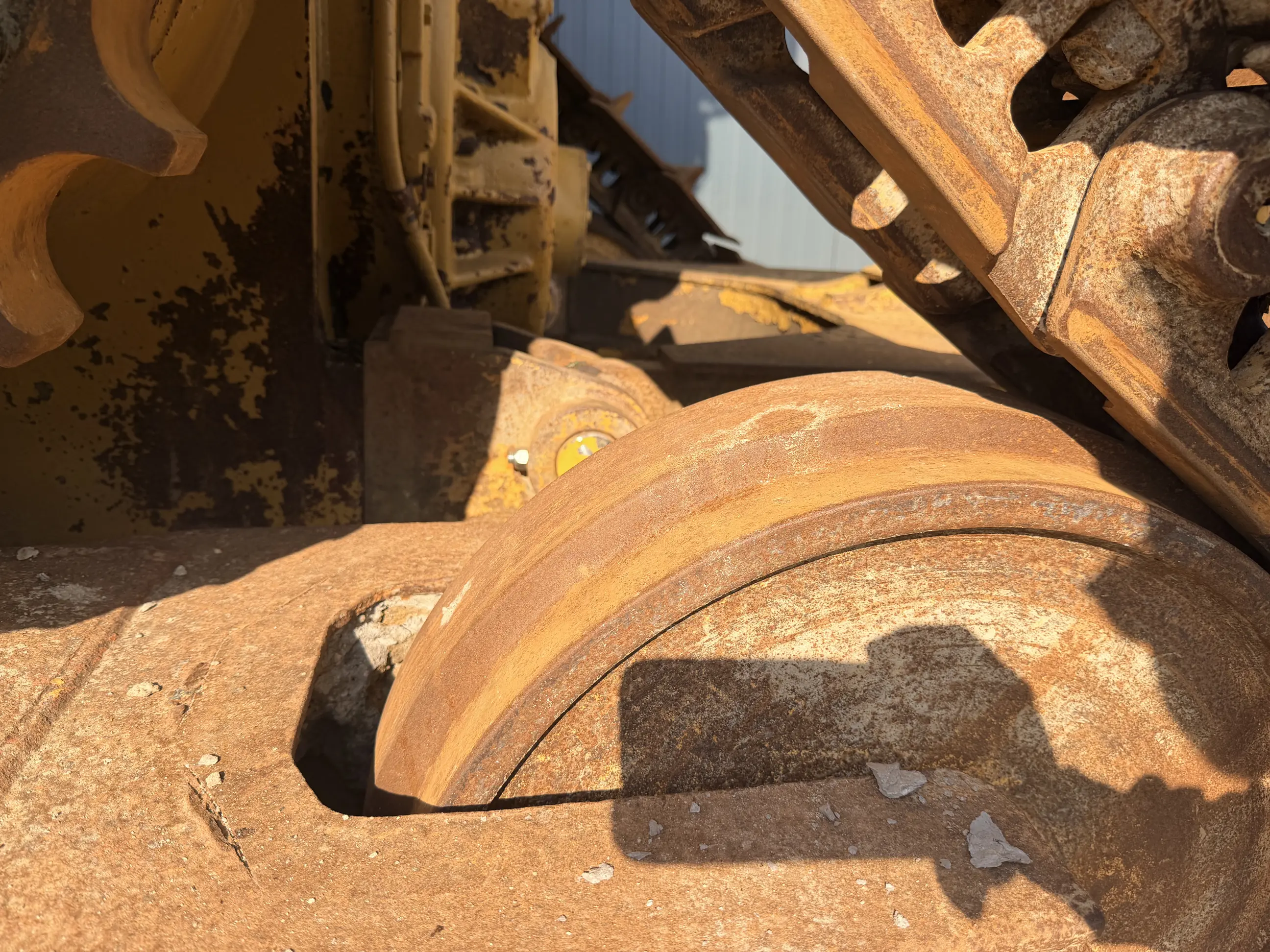

- Idlers

  70%

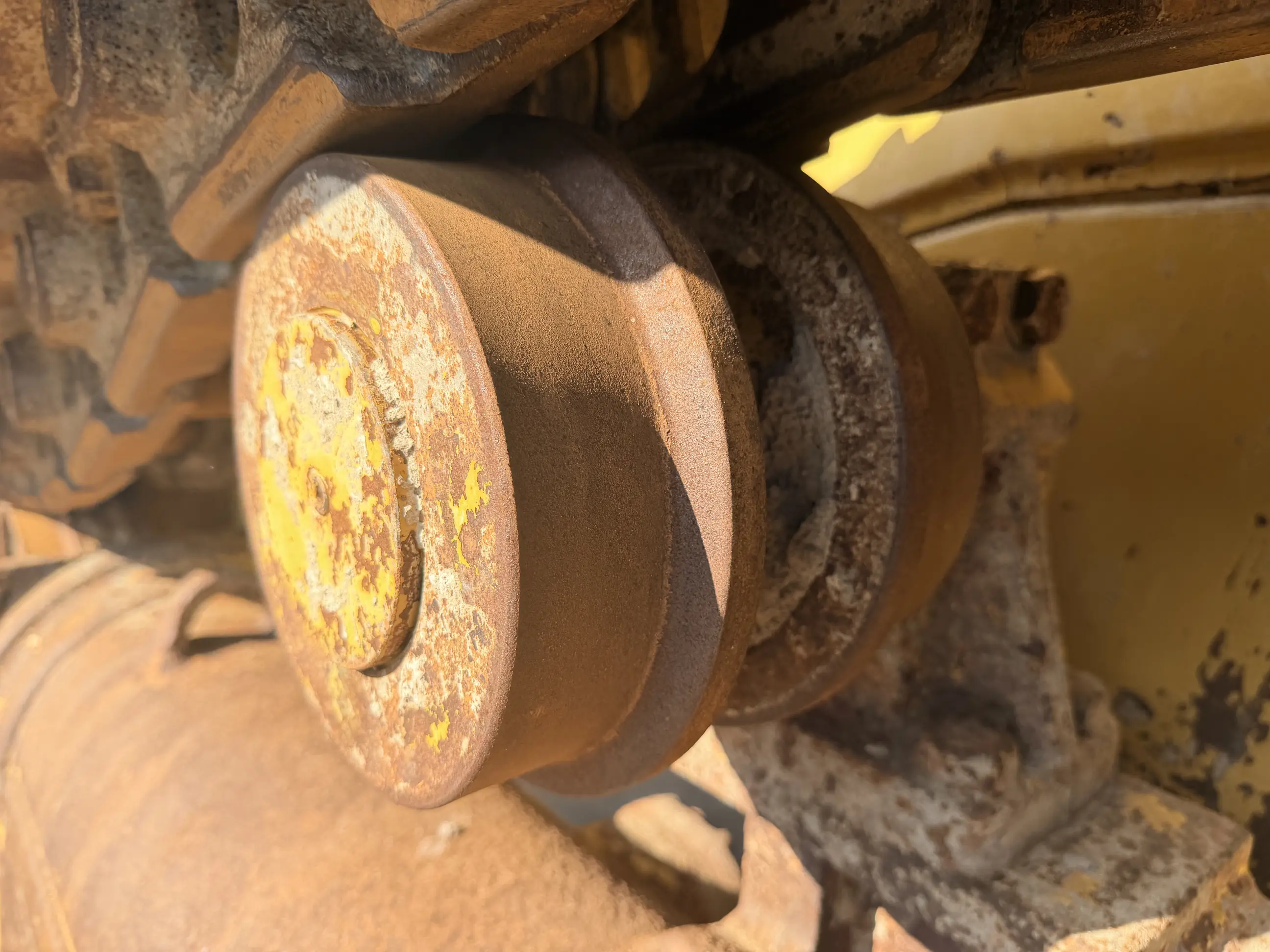

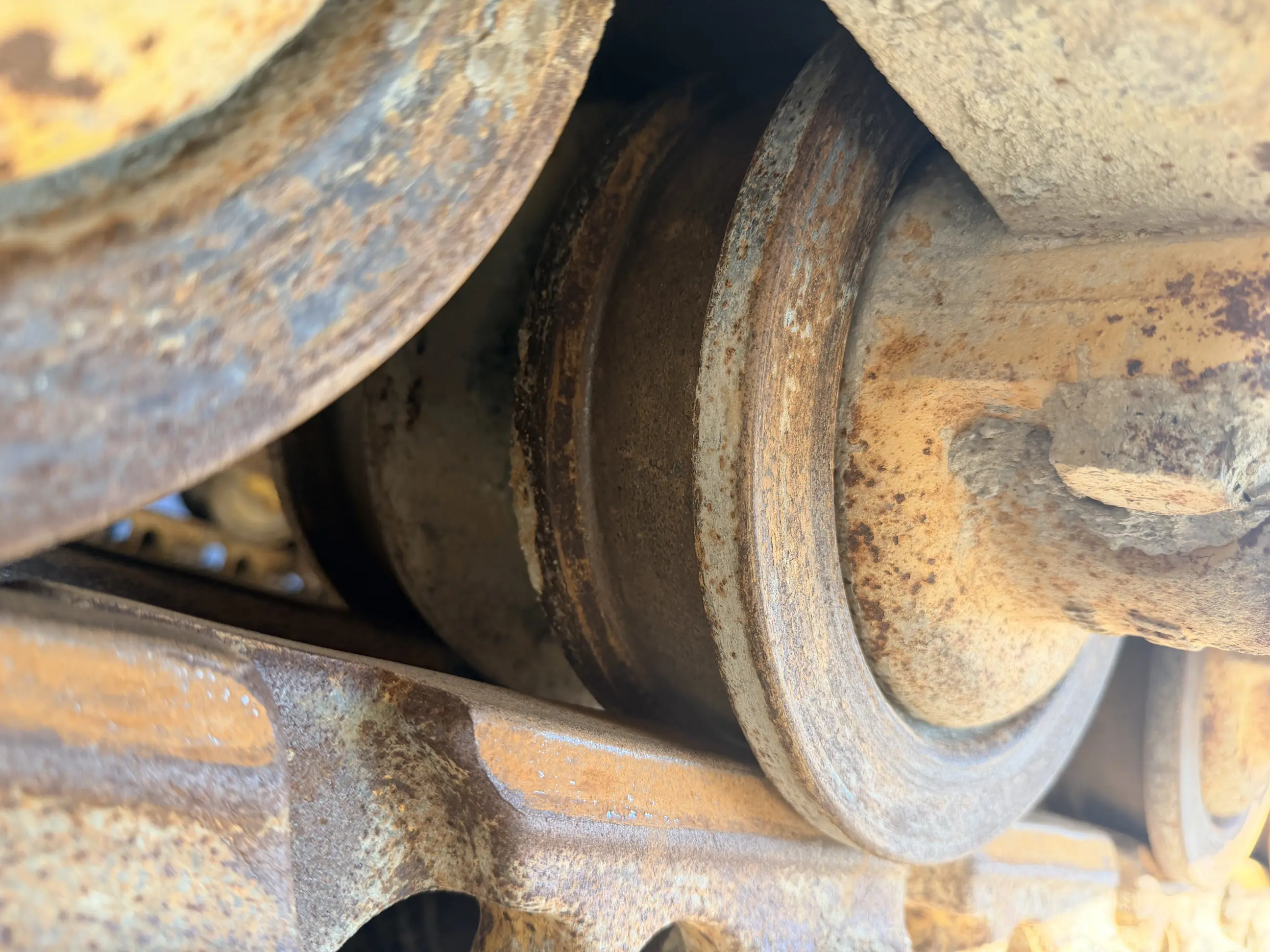

- Bottom rollers

  70%
- Top rollers

  70%

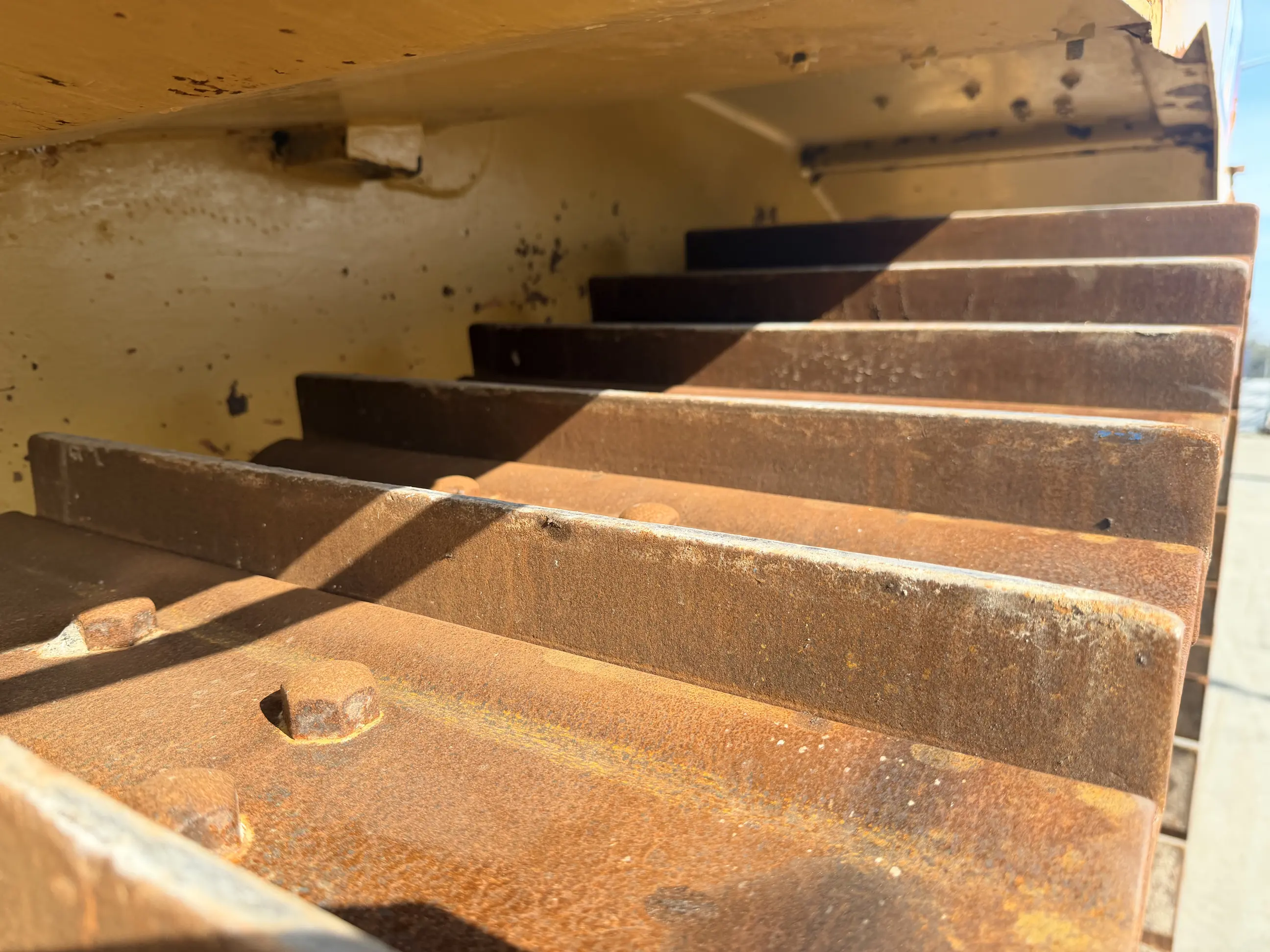

- Track pads

  70%

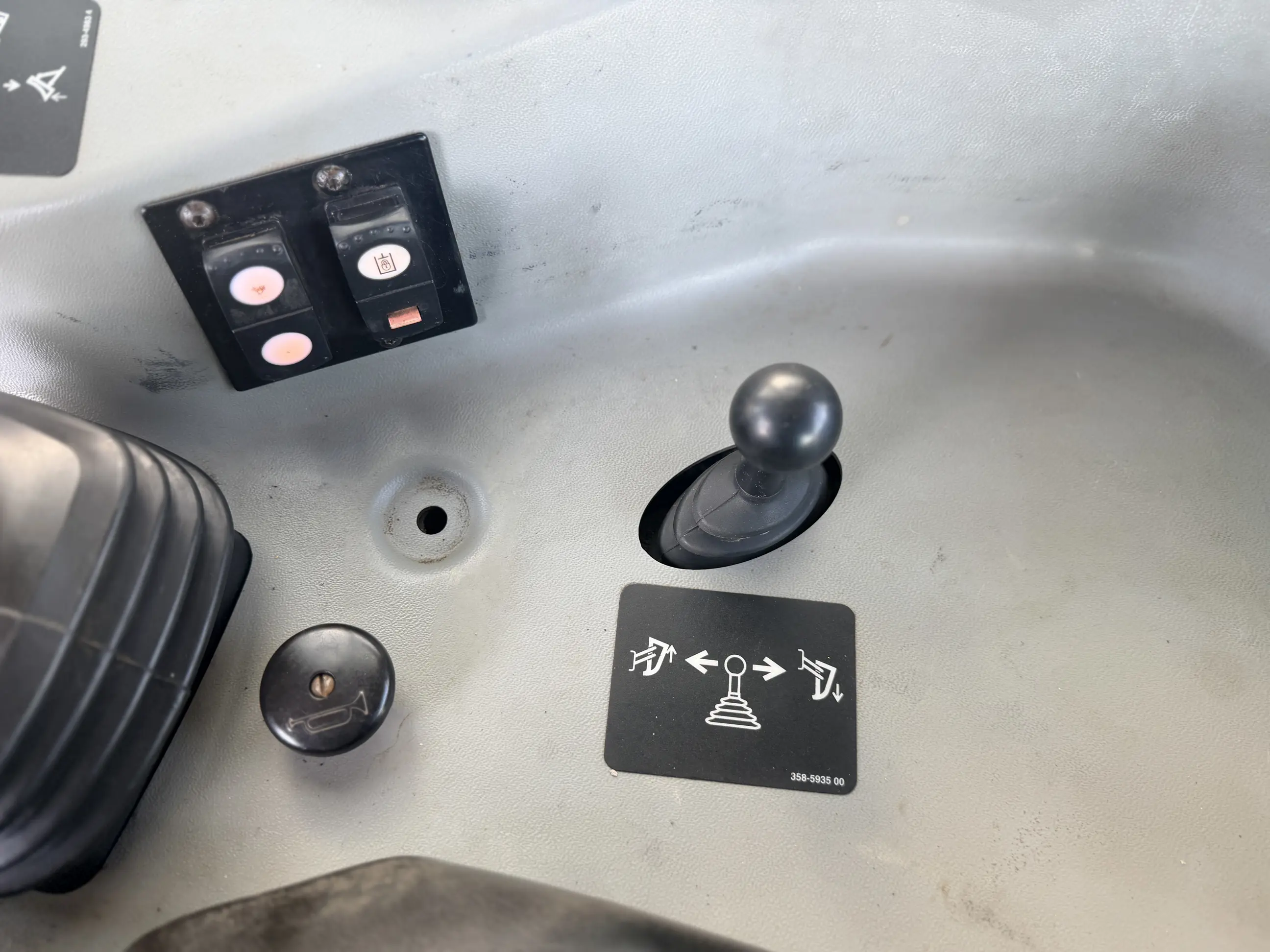

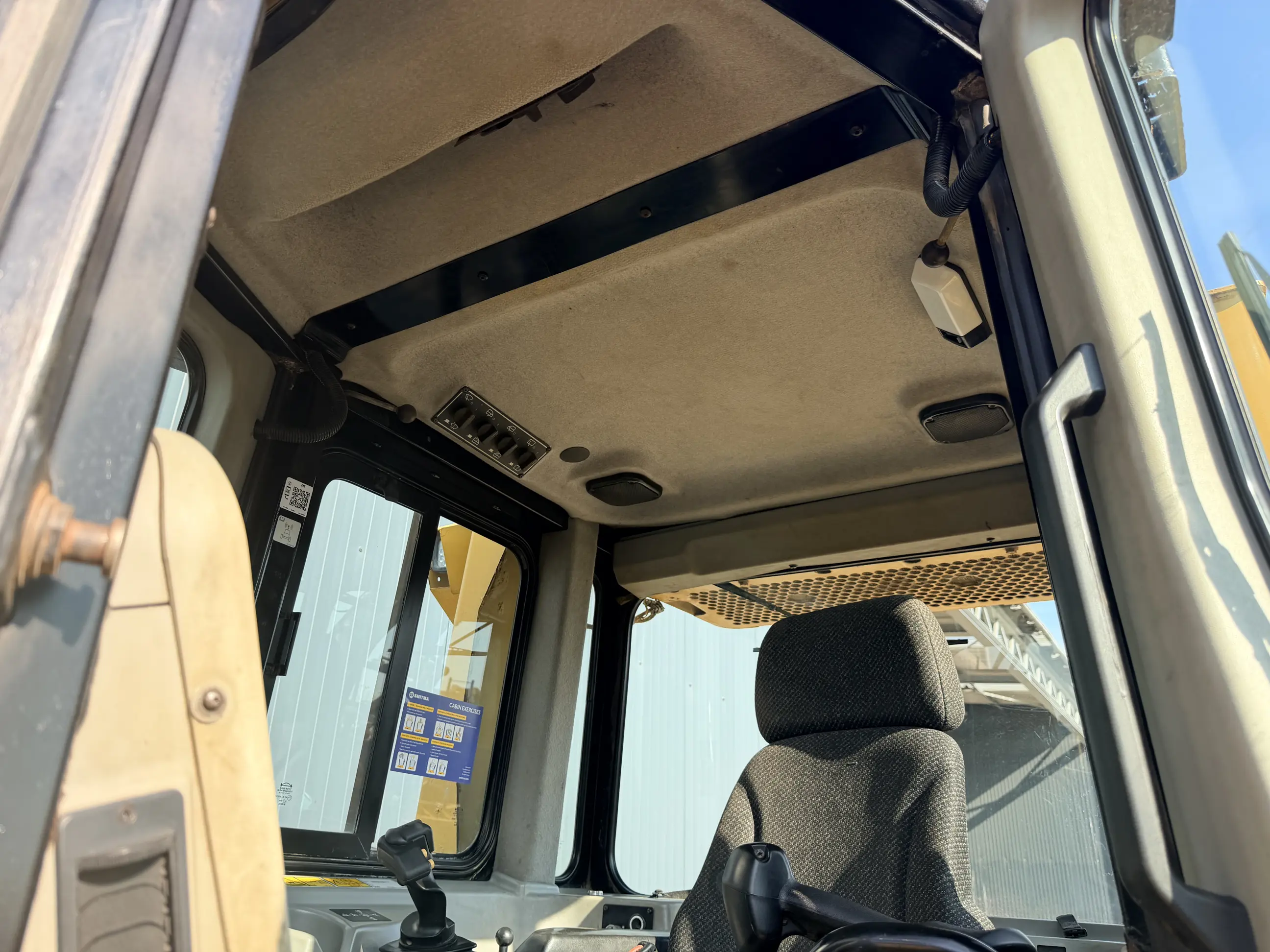

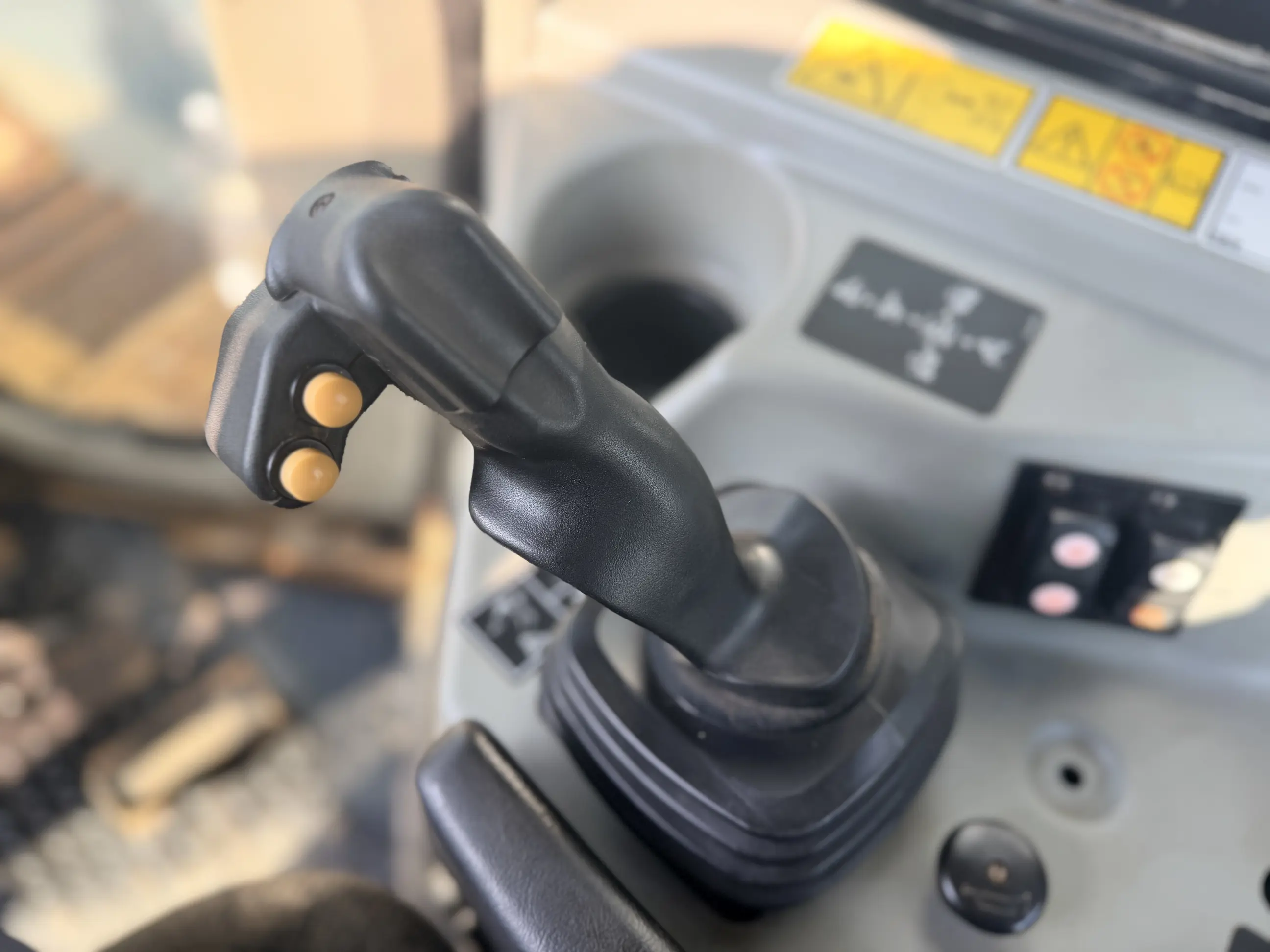

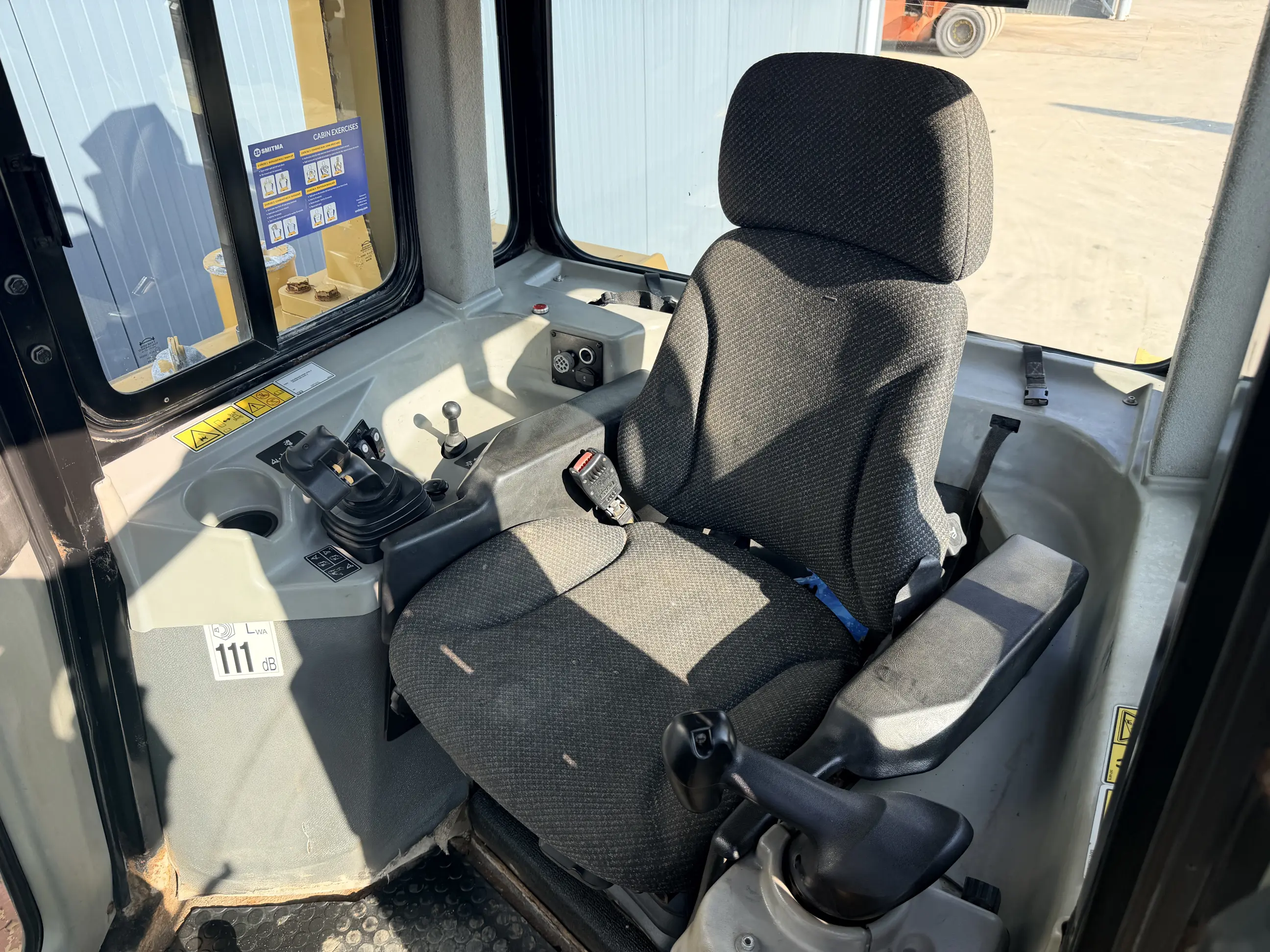

Operator Station
Operator Station

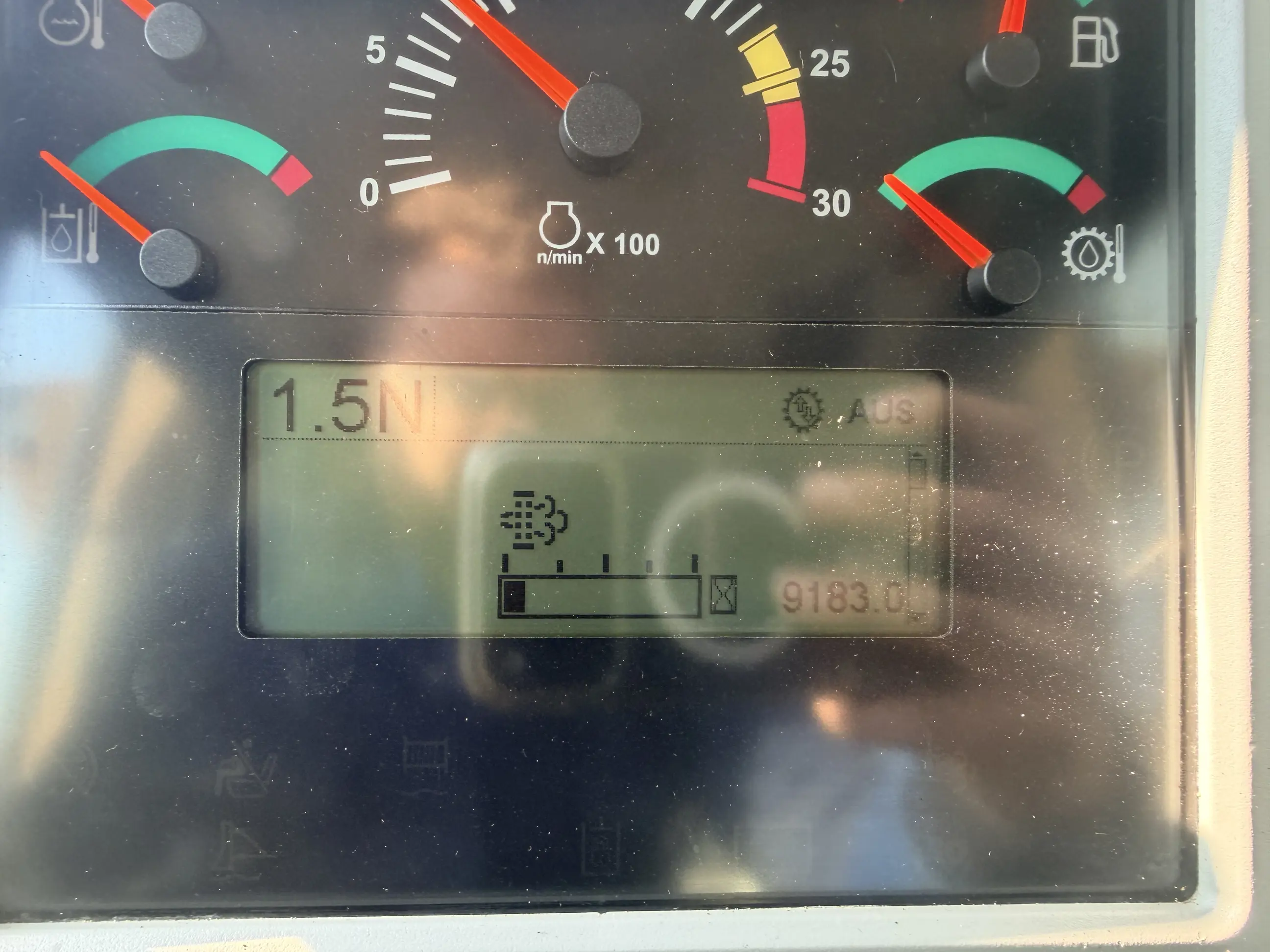

- Hourmeter

  Working, hours certified by Caterpillar

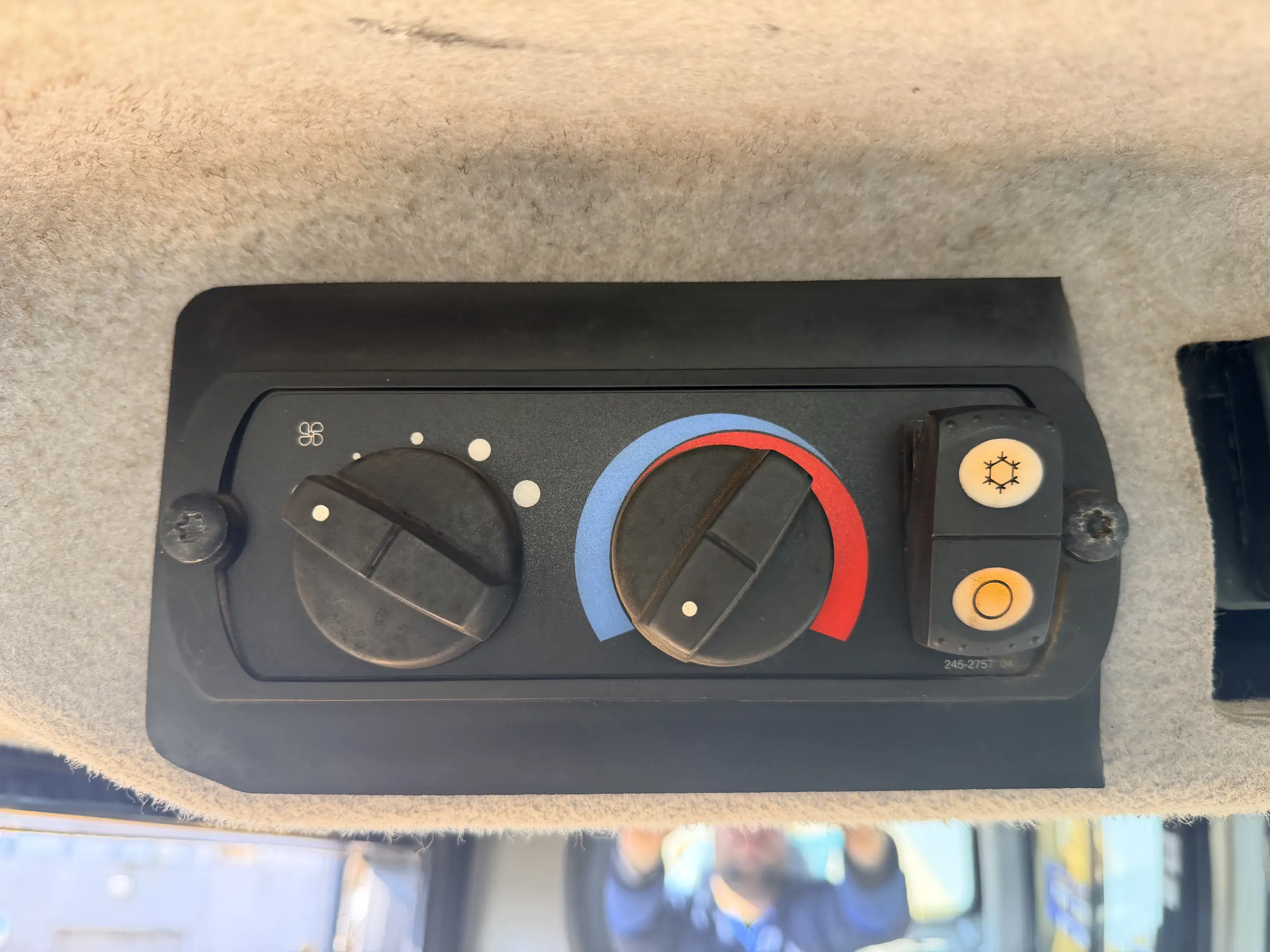

- Heater

  Working
- Gauges

  Working
- Switches
- Display
- Warning

  No Warnings Available
- Cabin glass

  Not broken

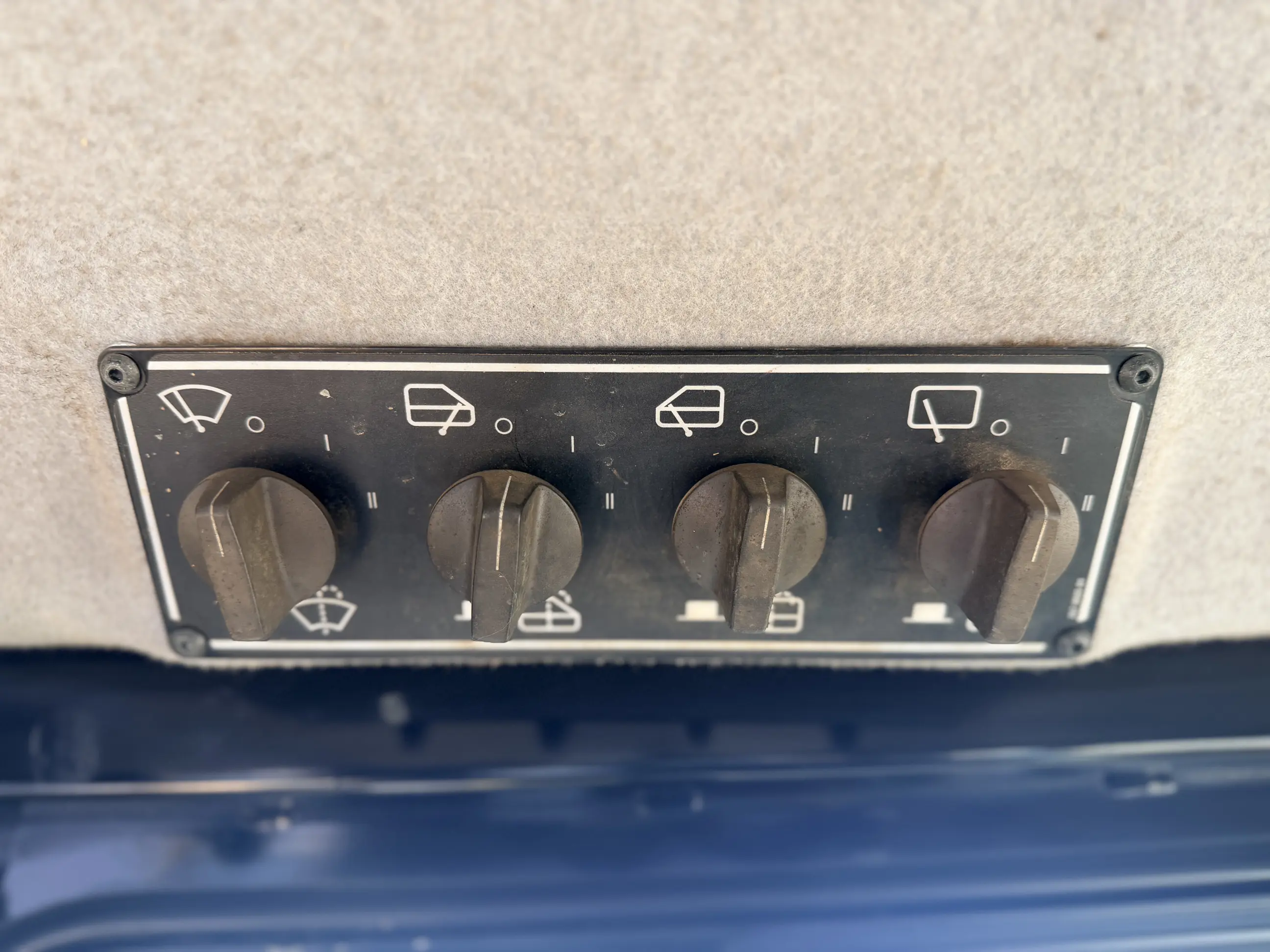

- Windshield wipers

  Working
- Interior lights

  Working
- Cabin floor
- Interior roof
- Seat
Steering
Steering
- Steering operating condition

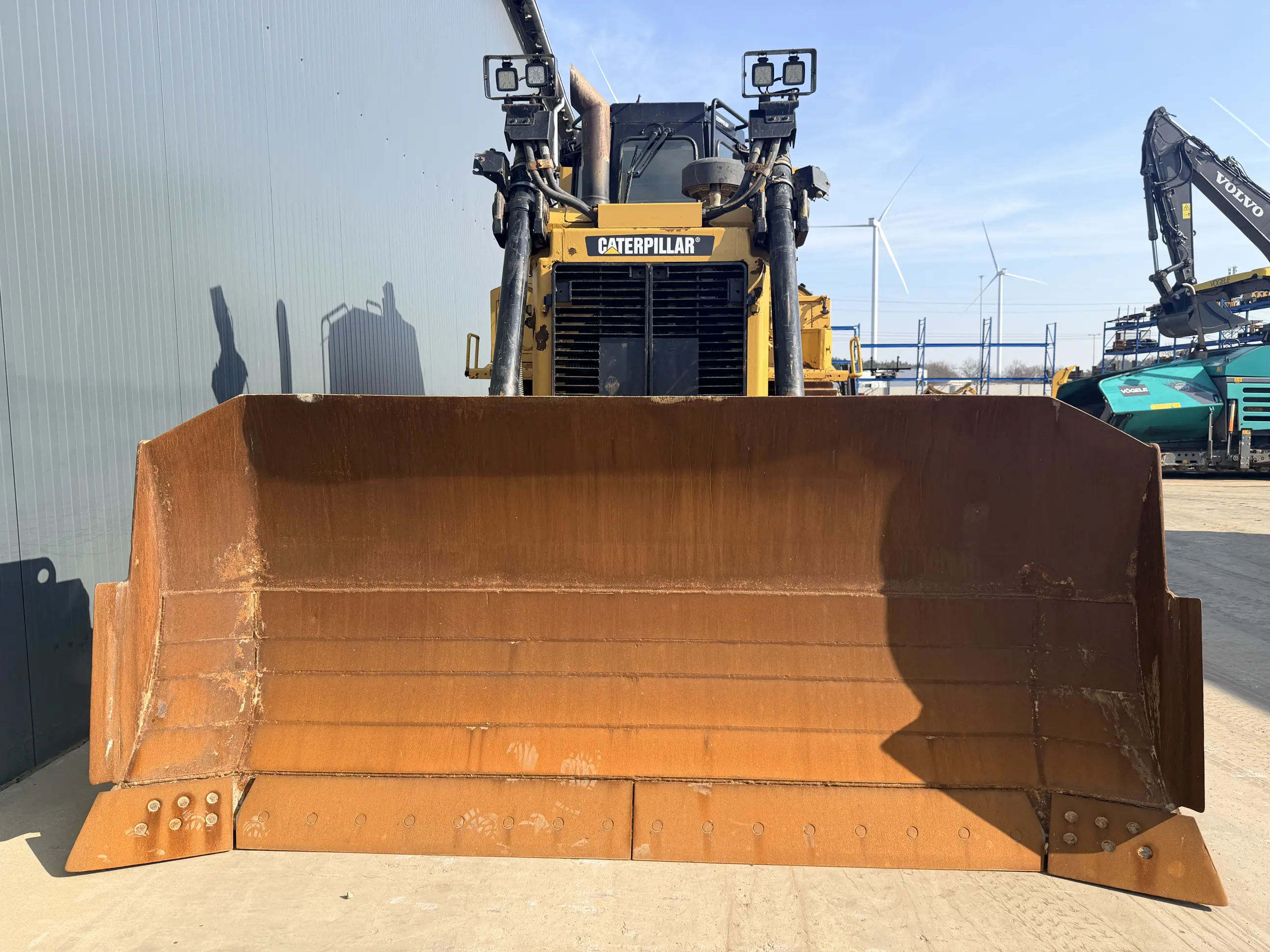

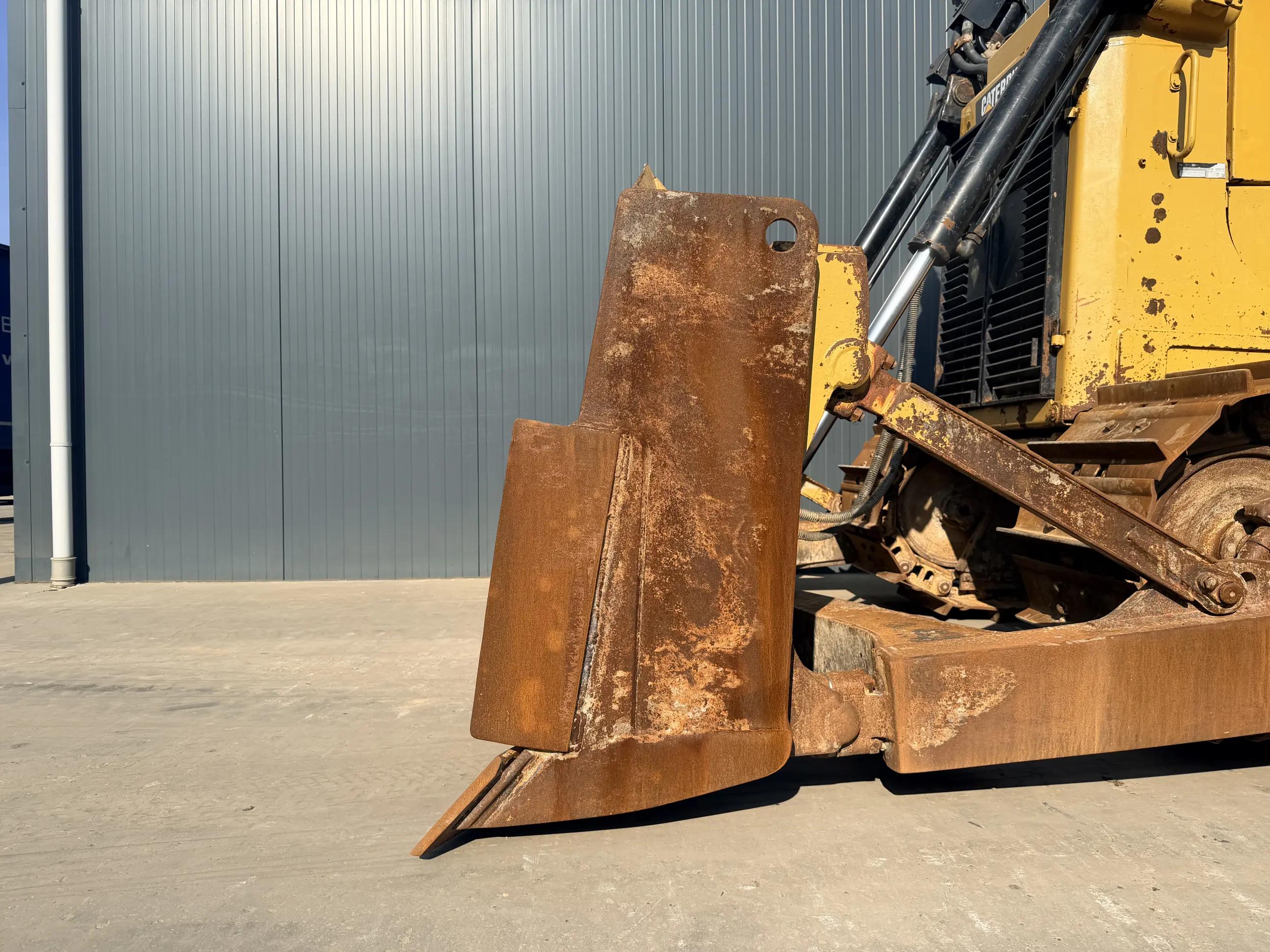

Frame and Blade
Frame and Blade
- Moldboard skin
- Cutting edge
- Play dozer frame
- Play blade pin
- Play push arms
- Play lift cylinder
- Lift cylinders leaking

  No
- Play tilt cylinder
- Tilt cylinder leaking

  No
- Play equaliser bar
- Cracks or welds

  No

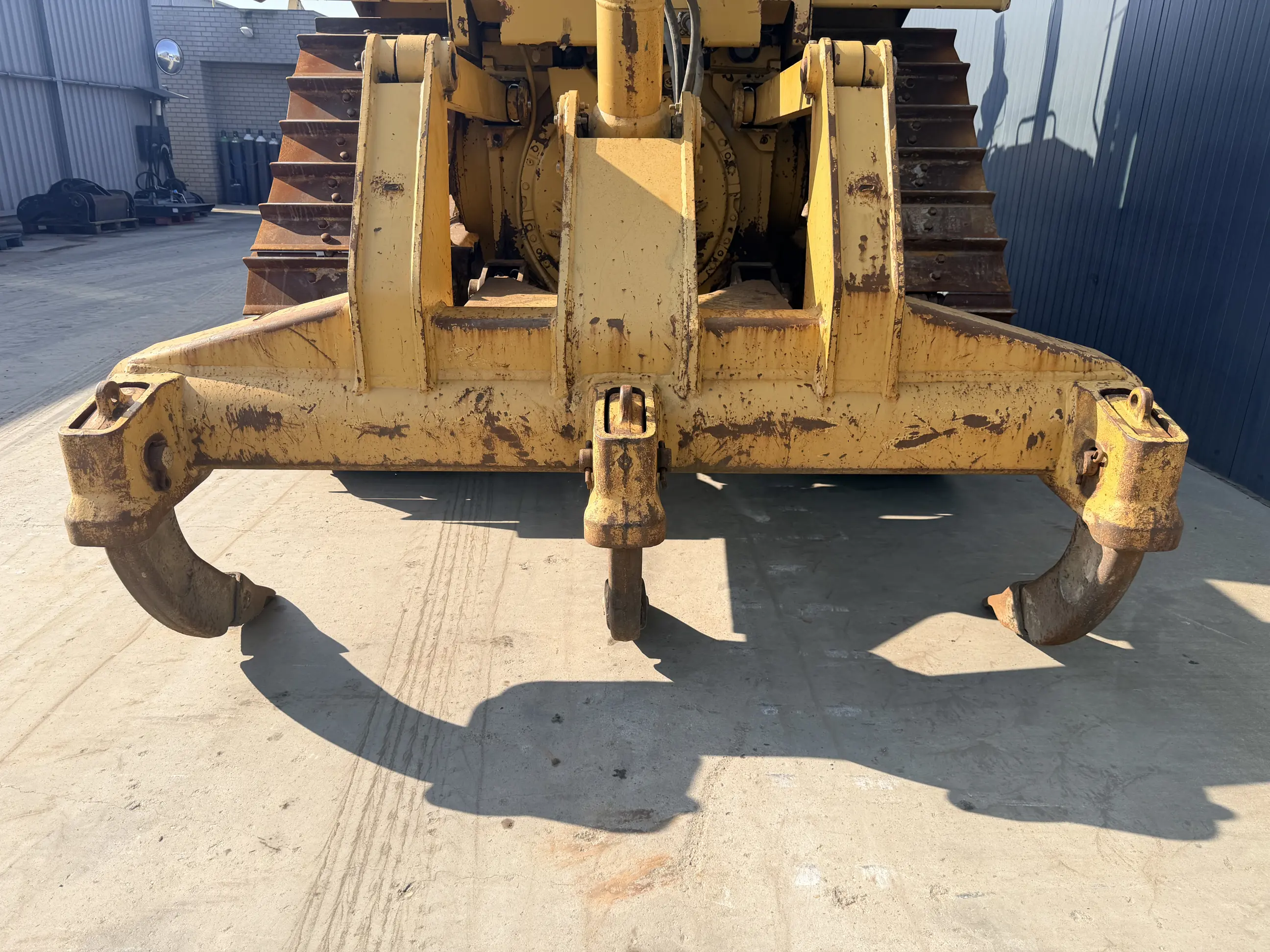

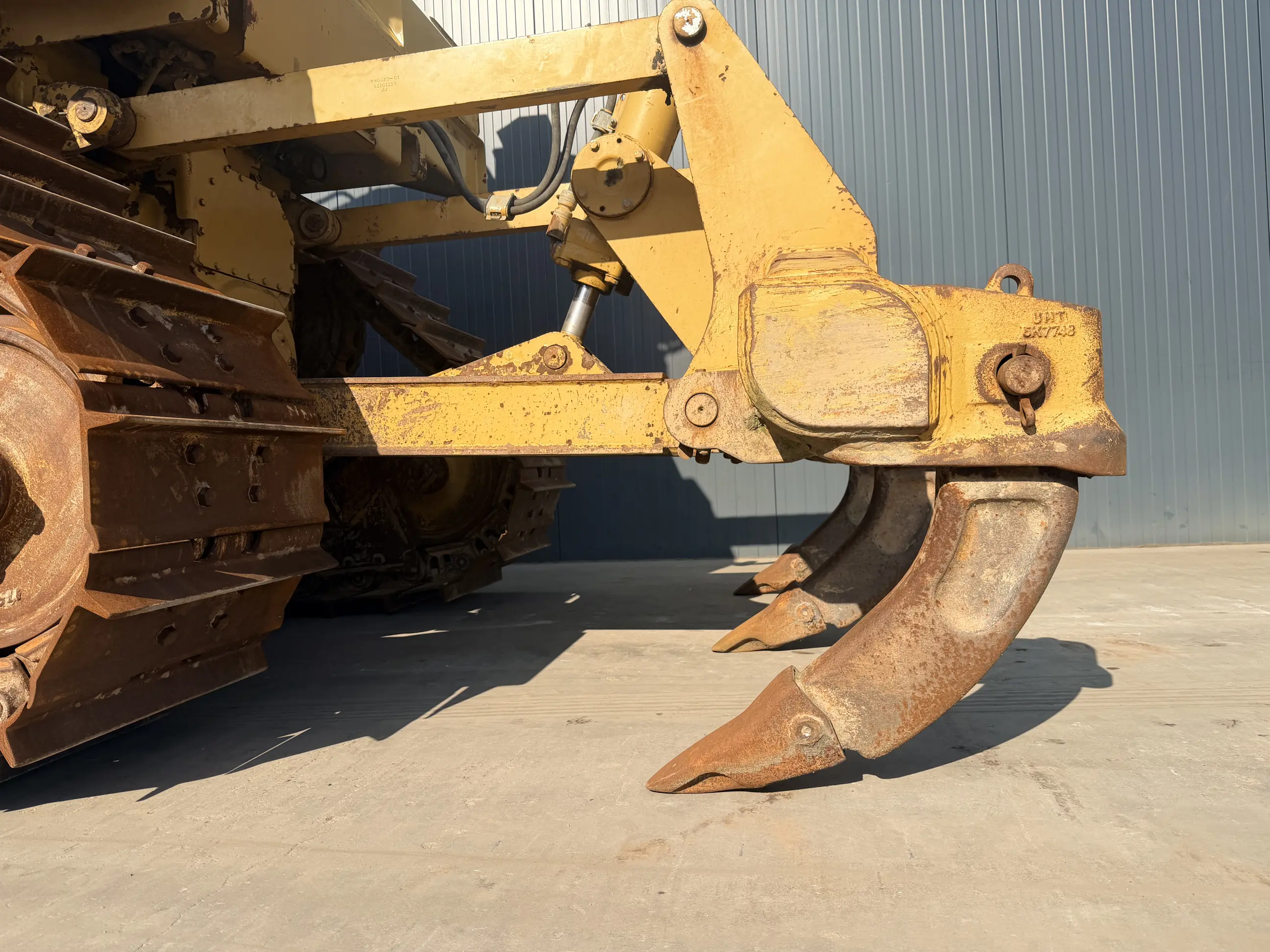

Ripper
Ripper
- Play ripper
- Cylinders leaking

  No
- Ripper frame
- Number of ripper shanks
Hydraulics
Hydraulics
- Hydraulic oil level ok

  Yes
- Hydraulic lines and fittings
- Hydraulic tank/sight glass and cap
- Hydraulic valves leaking

  No
- Operating condition hydraulics
Brake
Brake
- Service brake operation
- Parking brake operation
Drive Train/Transmission
Drive Train/Transmission
- Transmission fully operational in all gears forward and reverse

  Yes
- Transmission oil level ok

  Yes
- Transmission noisy

  No
- Oil level left final drive ok

  Yes
- Oil level right final drive ok

  Yes
- Drive chain leaks

  No
Electrical, Starting and Charging System
Electrical, Starting and Charging System
- Alternator functioning

  Yes
- Wiring
- Batteries
- Starter
- Additional work lights working

  Few lights don't work
Safety Items
Safety Items
- Seat belt

  Available
- Horn

  Working
